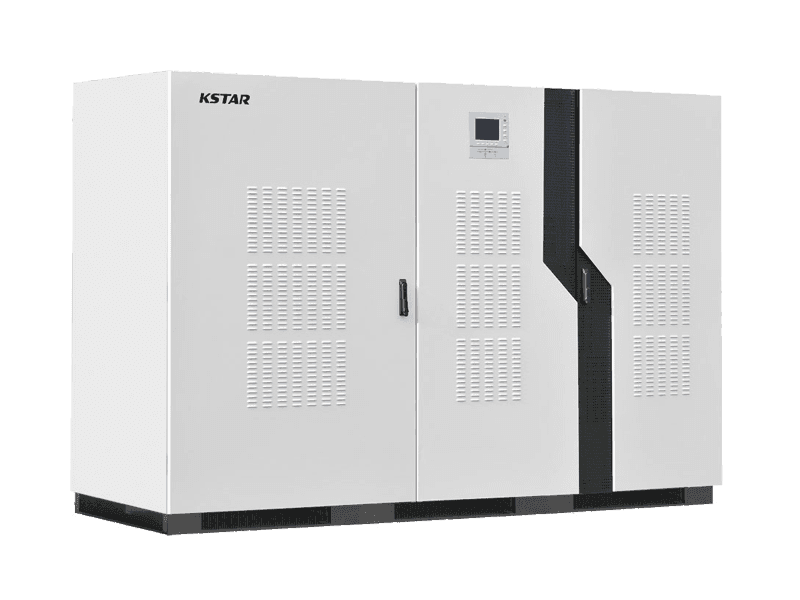

The UID series from 100 to 800 kVA are the Kstar UPS solution for installations requiring high energy efficiency and maximum power availability. These UPS provides maximum protection and power quality for data centres and industrial loads. The UPS has DSP (Digital Signal Processor) technology and provides true-line, double conversion power protection (in accordance with IEC EN 62040-3).

General Features

● Online double conversion

● Full DSP controlkst

● High power factor

● Wide input adaptability

● Optimized battery management

● N+X parallel redundancy

● Strong overload capability

● Power walk in

● Generator mode

● Multi-protection

● EPO function

● User-friendly network management

Technical Specification

MODEL

UID100

UID120

UID160

UID200

UID300

UID400

UID500

UID600

UID800

Capacity

(VA/Watts)

100kVA / 90kW

120kVA / 108kW

160kVA / 144kW

200kVA / 180kW

300kVA / 270kW

400kVA/ 360kW

500kVA/ 450kW

600kVA/ 540kW

800kVA/

720kW

INPUT

Operating

voltage range

380/400/415Vac (-25% / +20% ), (3Ph+N+PE)

Operating

frequency

range

50/60Hz(±5%)

Power Factor

＞0.97 (with filter)

OUTPUT

Output Voltage

380/400/415Vac (±1%)

Output

frequency

50/60Hz (±0.05%)

Harmonic

Distortion

(THDv)

<2% with linear load

Crest factor

3:1 (max)

Efficiency

≥92%

≥92.5%

≥93%

≥93.5%

≥94%

BYPASS

Rated voltage

380/400/415Vac

Rated

frequency

50/60Hz (auto-sensing)

Voltage

protection

range

Upper limit: +20% (+10%,+15%,+20% adjustable)Lower limit: -40% (-10%, -20%, -30%, -40% adjustable)

Frequency

protection

range

±10% (±2.5%, ±5%,±10%, ±20% adjustable)

BATTERY

Battery

voltage

384Vdc ( 360~408Vdc )

480Vdc

600Vdc

SYSTEM FEATURES

Transfer time

0ms (Line mode →Battery mode)

Overload

Load≤110%/60min ,≤125%/10min ,≤150%/1min,to Bypass

LED display

Input, Inverter, Bypass, Battery, Output, Status

LCD display

I/O voltage, frequency, power, power factor, battery voltage, current, battery status, load percentage,

UPS status, history record, settings

Communication interface

Dry contact, RS232, RS485, SNMP card (Optional)

Optional

Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor,Bypass current-sharing inductor

ENVIRONMENT

Operating

Temperature

0℃～40℃

Storage

temperature

-25～55℃

Humidity

range

0～95% (non-condensing)

Altitude

<1500m

Noise level

<65db

<70dB

PHYSICAL

Dimension

W×D×H

(mm)

890×775×1600(6P)

1515×830×1600(12P)

1200×800×1600(6P)

1400×1000×1900(12P)

1400×1000×1900(6P)

1640×1000×1900(12P)

2580×1000×1900(500)12P

2800×1040×1900(600)12P

3280×1040 ×1950(12P)

Net weight

(kg)

625/1300

685/1450

1219/1774

1030/1715

1560/2395

1640/2510

3510

3950

4950

Shipping

weight (kg)

695/1370

755/1520

1349/1954

1130/1845

1690/2545

1770/2665

3730

4250

5245

STANDARDS

Safety

IEC/EN62040-1;IEC/EN60950-1

Performance

IEC 62040-3

EMC

IEC/EN62040-2;IEC 61000-2-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4; IEC61000-4-5;IEC61000-4-6;IEC61000-4-8;IEC 61000-4-11;
