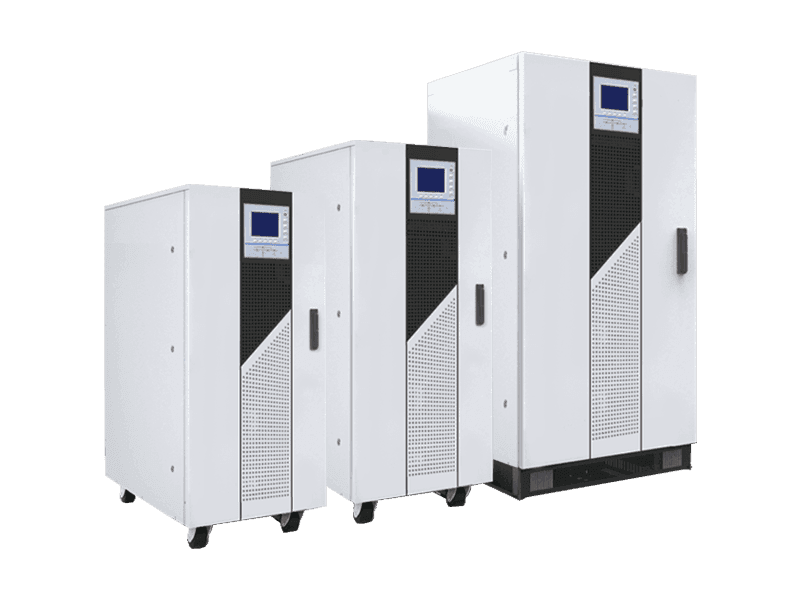

UID Series UPS is an ture on-line double conversion UPS with input and output isolation transformers. It accordance with international safety standard such as IEC EN 62040-3 and provides high level power protection for control applications and harsh environments.

General Features

● Online double conversion

● Full DSP control

● High power factor

● Wide input adaptability

● Optimized battery management

● N+X parallel redundancy

● Strong overload capability

● Power walk in

● Generator mode

● Multi-protection

● EPO function

● User-friendly network management

Technical Specification

MODEL

UID10

UID20

UID30

UID40

UID60

UID80

Capacity

(VA/Watts)

10kVA / 9kW

20kVA / 18kW

30kVA / 27kW

40kVA / 36kW

60kVA / 54kW

80kVA/ 72kW

INPUT

Operating

voltage

range

380/400/415Vac (-25% / +20% ), (3Ph+N+PE)

Operating

frequency

range

50/60Hz(±5%)

Power Factor

＞0.97 (with filter)

OUTPUT

Output Voltage

380/400/415Vac (±1%)

Output frequency

50/60Hz (±0.05%)

Harmonic

Distortion

(THDv)

＜3% with linear load

Crest factor

3:1 (max)

Efficiency

≥88%

≥89%

≥90%

≥90.5%

BYPASS

Rated voltage

380/400/415Vac

Rated frequency

50/60Hz

Voltage

protection

range

Upper limit: +20% (+10%,+15%,+20% adjustable)Lower limit: -40% (-10%, -20%, -30%, -40% adjustable)

Frequency

protection

range

±10% (±2.5%, ±5%,±10%, ±20% adjustable)

BATTERY

Battery voltage

384Vdc ( 360~384Vdc )

SYSTEM FEATURES

Transfer time

0ms (Line mode →Battery mode)

Overload

≤110%/60min ,≤125%/10min ,≤150%/1min，to Bypass

LED display

Input, Inverter, Bypass, Battery, Output, Status

LCD display

I/O voltage, frequency, power, power factor, battery voltage, current, battery status,

load percentage, UPS status, history record

Communication

interface

Dry contact, RS232, RS485, SNMP card (Optional)

Optional

Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor,Bypass current-sharing inductor

ENVIRONMENT

Operating

Temperature

0℃～40℃

Storage

temperature

-25～55℃

Humidity range

0～95% (non-condensing)

Altitude

<1500m

Noise level

<60dB

<65dB

PHYSICAL

Dimension

W×D×H (mm)

350×650×1050

430×830×1100

720×690×1600

Net weight (kg)

148

163

230

255

386

426

Shipping

weight

(kg)

168

183

263

288

432

472

STANDARDS

Safety

IEC/EN62040-1;IEC/EN60950-1

Performance

IEC 62040-3

EMC

IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4; IEC61000-4-5;IEC61000-4-6;IEC61000-4-8；IEC 61000-4-11;
