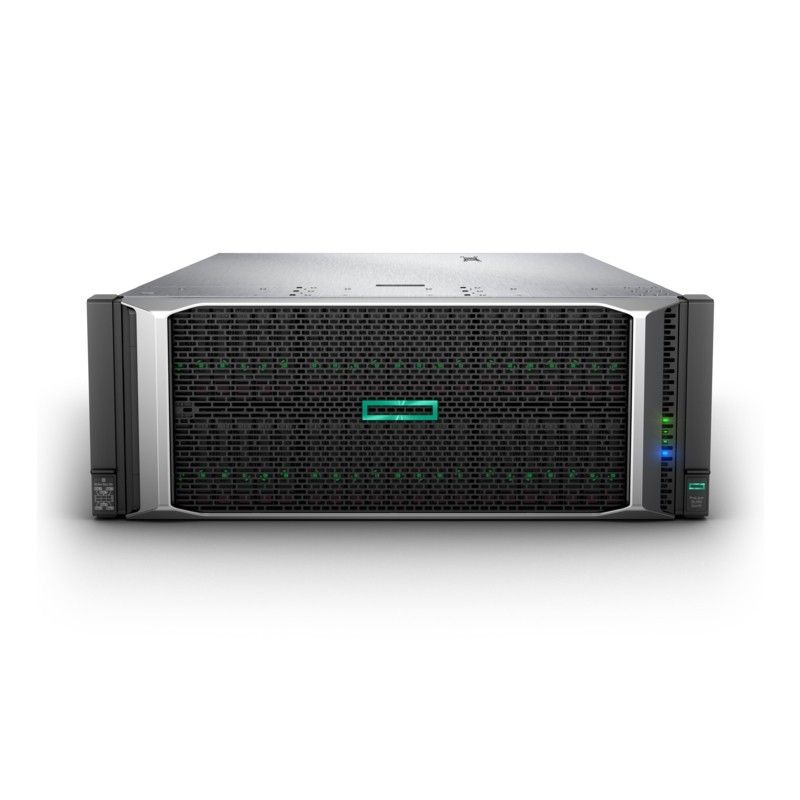

HPE ProLiant DL580 Gen10 5120 2.2GHz 14C 105W 2P 32G-2R P408i-p 8SFF 2x1600W Base CN Server

869852-AA1 Specification

869852-AA1 Specification

Description

HPE ProLiant DL580 Gen10 5120 2.2GHz 14C 105W 2P 32G-2R P408i-p 8SFF 2x1600W Base CN Server

Processor

Two Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) processors, supporting up to four processors

Memory

Comes standard with 32 GB DDR4-2666 MT/s (2 ×16 GB) memory, up to 48 memory slots

Array Controller

Built-in HPE Smart Array P408i-p SR Gen10 12Gb SAS array controller with intelligent storage battery

Hard Disk

Standard 8 SFF hot-plug hard disk slots, up to 48 One SFF hot-swappable hard disk, standard without hard disk

PCI-E

Seven PCI-E 3.0 slots

Power Supply

Two 1600W hot-swap platinum power supply, optional support for redundancy (3+1)

Rack Type

4U

Dimensions

(H x W x D)

(with bezel)

17.48cm x 44.55cm x 75.18cm

(6.88 x 17.54 x 29.60 in)

Weight

(approximate)

51.71 kg (114 lb) Maximum: (all hard drives, power supplies, DIMMs and processors installed)

28.12 kg (62 lb) Minimum: (one processor, one standard heatsink, one air baffle, one hard drive, two power supply, one DIMM, one NIC one rail kit with CMA and one primary riser installed)
