Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.

Model:

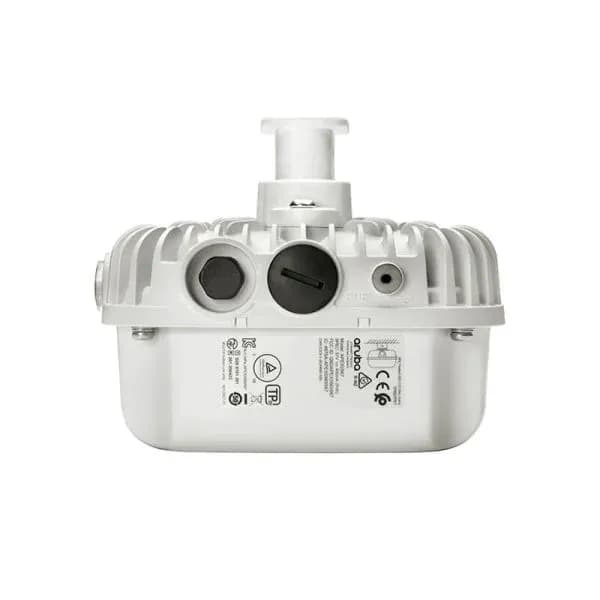

R4W43A – HPE Aruba 560 WiFi-6 Access Points

Brand:

Aruba

R4W43A Overview

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

R4W43A

Dimensions

16.5 cm (W) x 16.5 cm (D) x 11 cm (H)

6.5” (W) x 6.5” (D) x 4.3” (H)

Maximum (worst-case) power consumption

15.6W

Maximum (worst case) power consumption in idle mode

4.2W

Maximum (worst case) power consumption in deep-sleep mode

1.7

Power over Ethernet (PoE+)

802.3at-compliant

Operating temperature

-40° C to +55° C (-40° F to +140° F) with full solar loading

Operating humidity

5% to 95% non-condensing internal

Product Details

Note:

?

Common outdoor Access Point mount, share common mounting rail for simplified outdoor access point installation.

?

1G PoE Ethernet ports with Intelligent Power Monitoring, 1Gbps Ethernet with included IP66/67 gland.

Note:

?

Entry-level dual-band Wi-Fi 6, 11ax radio supports dual-band 2*2

?

Integrated IoT radio, IoT radio supports 802.15.4/Zigbee and BLE

Features

Incredible Efficiency

The 560 Series access points (APs) are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Aruba Air Slice for Extended OFDMA Assurance

Initially, APs in controller-less mode (Instant) can provide SLA-grade performance by allocating radio resources, such as time, frequency, and spatial streams, to specific traffic types. By combining Aruba’s Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed.

Multi-User MIMO (MU-MIMO)

560 Series APs support downlink MU-MIMO just like Wi-Fi 5 (802.11ac Wave 2) APs. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.

Aruba Advanced Cellular Coexistence (ACC)

The ACC feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.

Intelligent Power Monitoring (IPM)

Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power – ideal when wired switches have exhausted their power budget.

Target Wake Time (TWT)

Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps improve client power savings and reduces airtime contention with other clients.

Compare to Similar Items

Table 2 shows the comparison of R4W43A.

Module

R4W43A

R4W39A

Maximum (worst-case) power consumption

15.6W

PoE powered (dual ports): 32.0W

PoE powered (single port, full function): 26.1W

Maximum (worst case) power consumption in idle mode

4.2W

14.0W (single PoE) or 16.0W (dual PoE)

Maximum (worst case) power consumption in deep-sleep mode

1.7W

2.9W (single PoE) or 3.9W (dual PoE)

Dimensions

16.5 cm (W) x 16.5 cm (D) x 11 cm (H)

6.5” (W) x 6.5” (D) x 4.3” (H)

230mm (W) x 220mm (D) x 140mm (H) / 9.0″ (W) x 8.7″ (D) x 5.6″ (H)

Operating temperature

-40° C to +55° C (-40° F to +140° F) with full solar loading

-40°C to +65°C / -40°F to +149°F with full solar loading

Operating humidity

5% to 95% non-condensing internal

5% to 93% non-condensing internal
