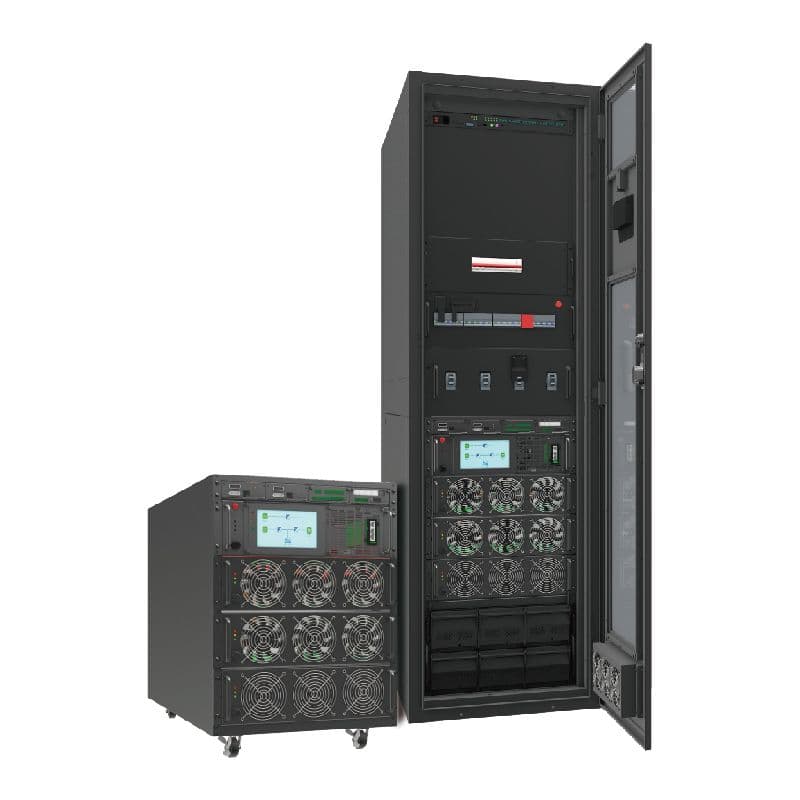

The HPM3300E subrack modular UPS ranging from 40 to 150kVA has a compact structure. It is scalable and hot-swappable, making it ideal for customized cabinets, modular data centers and other applications. Matching with the Kstar KLi series lithium battery rack, HPM3300E lithium-ion UPS system can provide higher power density, smaller footprint, and longer life span.

The HPM3300E subrack modular UPS ranging from 40 to 150kVA has a compact structure. It is scalable and hot-swappable, making it ideal for customized cabinets, modular data centers and other applications. Matching with the Kstar KLi series lithium battery rack, HPM3300E lithium-ion UPS system can provide higher power density, smaller footprint, and longer life span.

General Features

● All units adopt modular design, including power module, bypass module, monitoring module, which can be easily integrated in MDC or customized cabinete

● Wide input voltage range, line voltage range is 138-485V

● Parallel redundant configuration (Max 8 units) to enhace reliability.

● High input power factor 0.99, high efficiency 96.5% and ECO mode to save energy

● LBS funtion & Strong load capacity

● Intelligent management：Standard colorful touch screen

● Compatible with generator

● VRLA & Lithium battery supportable

Technical Specification

Model

HPM3300E-RM-40

HPM3300E-RM-50

HPM3300E-RM-60

Cabinet Model

HPM3300E-80

HPM3300E-120

HPM3300E-100

HPM3300E-150

HPM3300E-120

Cabinet capacity (VA)

40k~80k

40k~120k

50k~100k

50k~150k

60k~120k

Module capacity (VA)

40k

50k

60k

Max. number

2+1

3

2+1

3

2+1

Input

Nominal voltage

380/400/415Vac, (3Ph+N+PE)

Operating voltage range

138~305Vac for 40% load; 305~485Vac for 100% load

Operating frequency range

40Hz~70Hz

Power factor

≥0.99

Harmonic distortion (THDi)

≤3% (100% linear load)

Bypass voltage range

Max. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)

Min. voltage: -45% (optional-10%, -15%, -20%, -30%)

Bypass frequency range

±10%

Power Walk In

Support

Generator input

Support

Output

Rated voltage

380/400/415Vac, (3Ph+N+PE)

Power factor

1

Voltage regulation

±1%

Output

Line mode

Synchronize with input, when the input frequency ＞±10%（±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)

frequency

Bat. mode

(50/60±0.1%)Hz

Crest factor

3:01

Harmonic distortion (THDv)

≤2% with linear load; ≤4% with nonlinear load

Efficiency

96.50%

Battery

VRLA battery

360Vdc~600Vdc (30~50pcs continuously adjustable, 30pcs default, 36~50pcs no power

Battery voltage

derating; 32~35pcs output power factor 0.9; 30/31pcs output power factor 0.8)

Lithium battery

512Vdc

Power module charge current

20A (Max.)

System features

Transfer time

Utility to Battery : 0ms; Utility to Bypass: 0ms

Overload

Line mode

≤110%, 60min; ≤125%, 10min; ≤150%,1min to bypass; ＞150%, shut down immediately

Bypass mode

30℃:135% overload for long term; 40℃:125% overload for long term; 1000% overload for 100 ms

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Low battery voltage

Alarm and Switch off

Self-diagnostics

Upon Power On and Software Control

Backfeed protection

Support

Battery

Advanced Battery Management

Noise suppression

Complies with EN62040-3

Audible & visual alarms

Line Failure, Battery Low, Overload, System Fault

Status LED & LCD display

Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault

Reading on the LCD display

Input, Output, Battery, Command, Setting, Maintenance

Communication interface

RS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)

Operation Environment

Operating temperature

0℃～40℃

Storage temperature

-25℃～55℃

Humidity range

0～95% (non condensing)

Altitude

<1500m, derating required when >1500m

Noise level

<57dB

<58dB

<62dB

Physical

Dimension

UPS cabinet

485×850×620

W×D×H (mm)

Power module

440×620×130

Net weight (kg)

UPS cabinet

103

113

110

Power module

33

34

35

Standards

Safety

IEC/EN62040-1, IEC/EN62477-1

EMC

IEC/EN62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8)
