Key Applications

Virtualization

Software-defined Storage

AI Inference and Machine Learning

Cloud Computing

Enterprise Server

Key Features

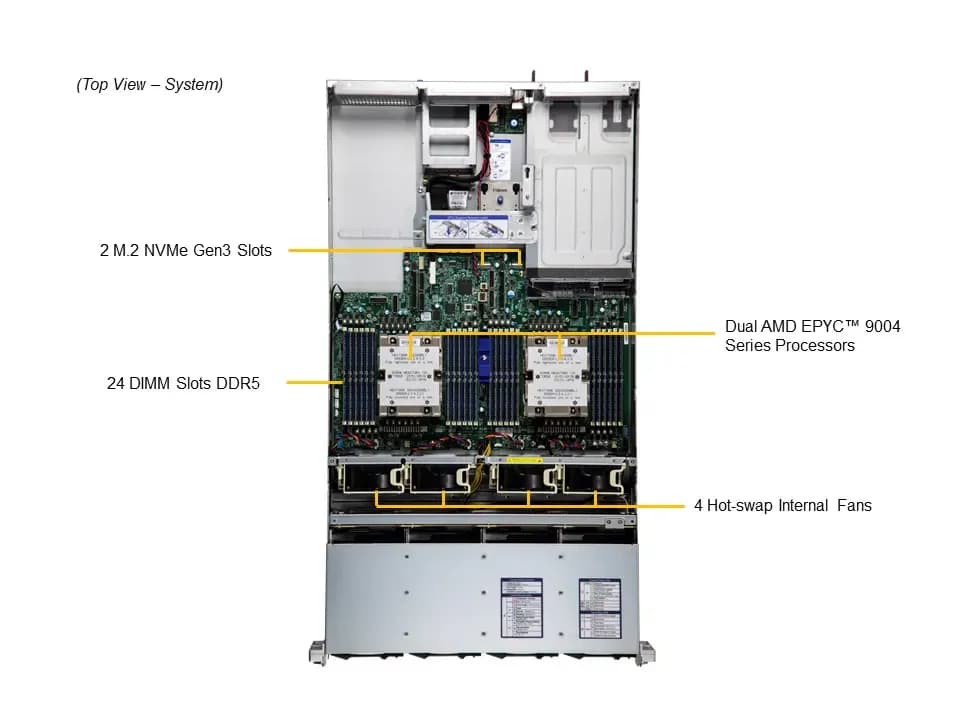

Dual 4th Generation AMD EPYC™ 9004 Series Processors

24 DIMM Up to 6TB ECC DDR5 RDIMM

1 AIOM/OCP NIC 3.0 Slot

Configuration Options for up to;

4 PCIe 5.0 x16 Slots OR;

8 PCIe 5.0 x8 Slots or;

3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or;

2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or;

1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots

1600W Redundant Power Supplies  (Titanium Level)

Optional Configuration: 1200W/2000W/2600W Redundant Power Supplies (Titanium Level);(*Full redundancy based on configuration and application load)

2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)

Support up to 3 GPUs

Product SKUs

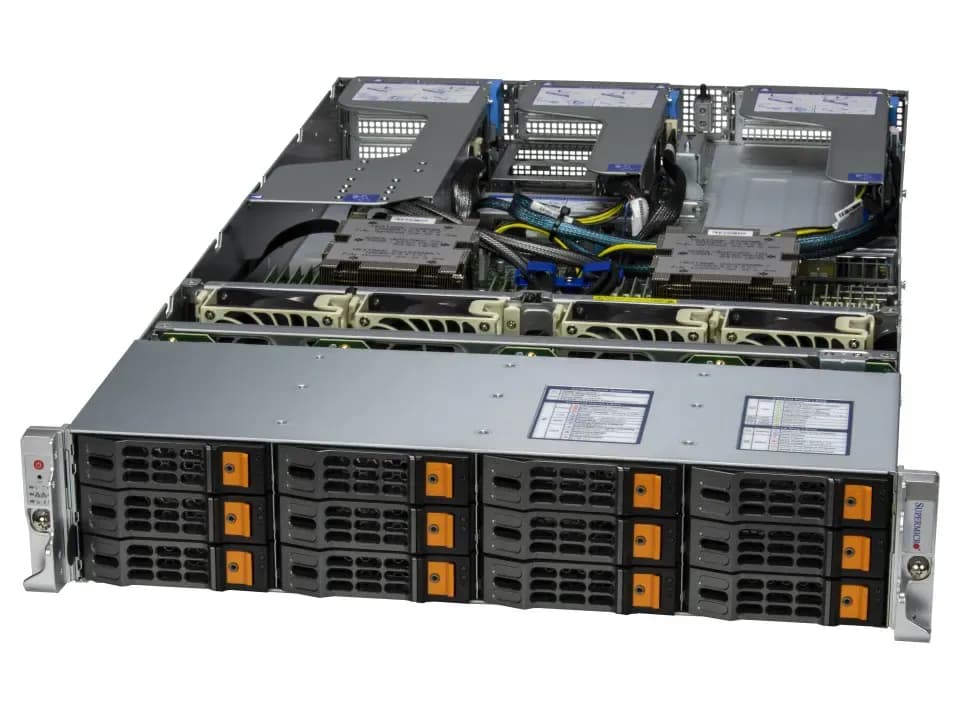

A+ Server AS -2025HS-TNR

Motherboard

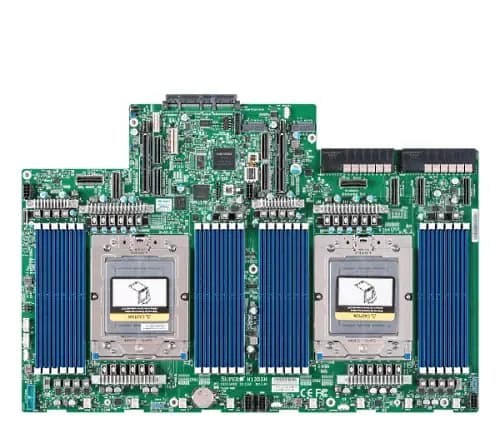

Super H13DSH

Processor

CPU

Dual Socket SP5

AMD EPYC™ 9004 Series Processors

Core Count

Up to 256C/512T

Note

Supports up to 400W TDP CPUs (Air Cooled)*

*Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.

GPU

Max GPU Count

Up to 2 double-width or 2 single-width GPU(s)

Supported GPU

NVIDIA PCIe: H100, L40, RTX A6000, RTX A5000, RTX A2000, RTX 6000 Ada Generation, RTX 4000, L40S, L4, A40, A16, A100

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

PCIe

System Memory

Memory

Slot Count: 24 DIMM slots

Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM

View Memory Options

Memory Voltage

1.1V

On-Board Devices

Chipset

System on Chip

Network Connectivity

Via AIOM

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

2 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

BIOS Features

ACPI 6.4

Plug and Play (PnP)

SMBIOS 3.5 or later

UEFI 2.8

USB Keyboard support

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI Power Management

Power-on mode control for AC power loss recovery

Power button override mechanism,

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Voltage

System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Chassis

Form Factor

2U

Model

CSE-HS829-R1K63P-A

Dimensions and Weight

Height

3.5″ (88.9 mm)

Width

17.2″ (437 mm)

Depth

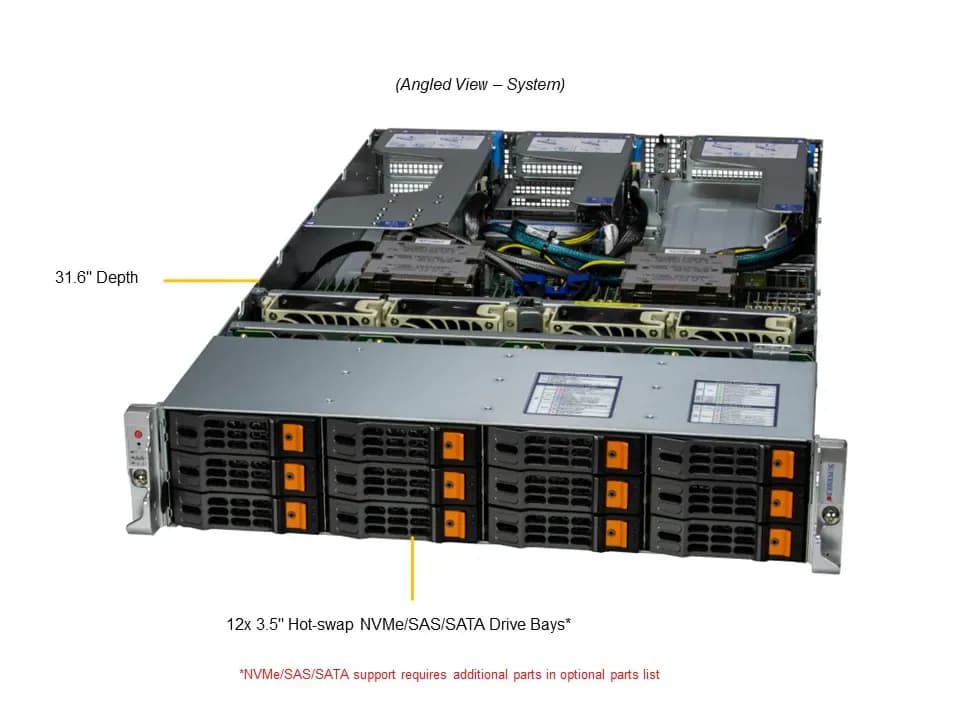

31.6″ (803 mm)

Package

10.4″ (H) x 23.8″ (W) x 43.6″ (D)

Weight

Gross Weight: 69 lbs (31.3 kg)

Net Weight: 39 lbs (17.7 kg)

Available Color

Black front & silver body

Front Panel

LED

HDD activity

LAN1 activity

Power status

System information

Buttons

Power On/Off

UID button

Expansion Slots

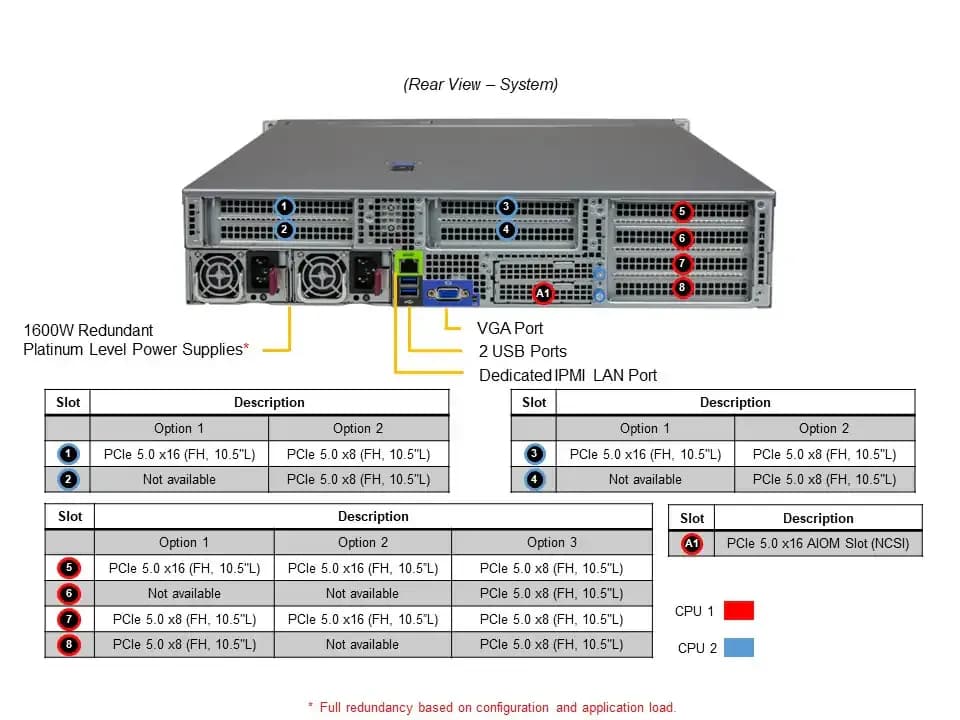

PCI-Express (PCIe) Configuration

Default

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option A*

1 PCIe 5.0 x16 (in x16) FHFL double-width slot(s)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B*

2 PCIe 5.0 x8 (in x16) FHFL slot(s)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

…

View AOC Options

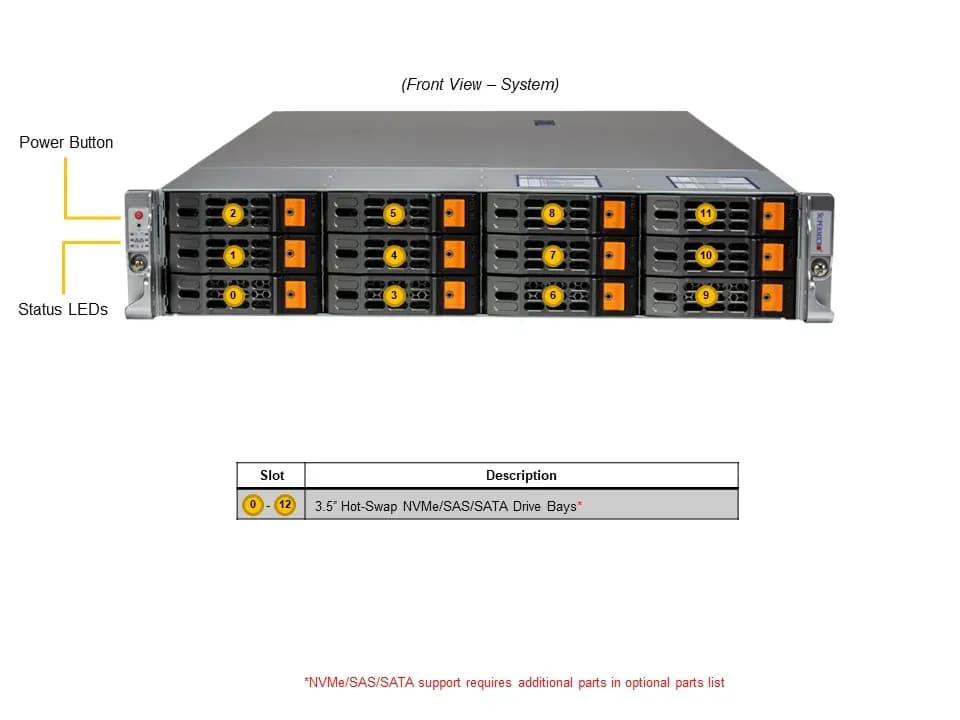

Drive Bays / Storage

Drive Bays Configuration

Default: Total 12 bay(s)

12 front hot-swap 3.5″ NVMe/SAS/SATA drive bay(s)

View Drive Options

M.2

2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

4x 8cm heavy duty fans with optimal fan speed control

Air Shroud

2 Air Shroud(s)

Power Supply

2x 1600W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1600W: 200-240Vac / 50-60Hz

1600W: 200-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 83.3A / Min: 0A (100Vac-127Vac)

Max: 133.3A / Min: 0A (200Vac-240Vac)

12V SB

Max: 3.5A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)

Environmental / Recycling

Recycle

Return Server-End of Life Product
