Key Applications

Virtualization

Software-defined Storage

AI Inference and Machine Learning

Cloud Computing

Enterprise Server

Data Center Optimized

Database Processing and High Density Storage

Key Features

Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.

Single Intel® Xeon® 6 Processor.

16 DIMM slots supporting up to 1TB of memory (6700E series CPU).

Double width add-on card support.

Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).

Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.

Trusted Platform Module (TPM) 2.0 onboard.

Modularized and Tool-less design for easy serviceability.

Product SKUs

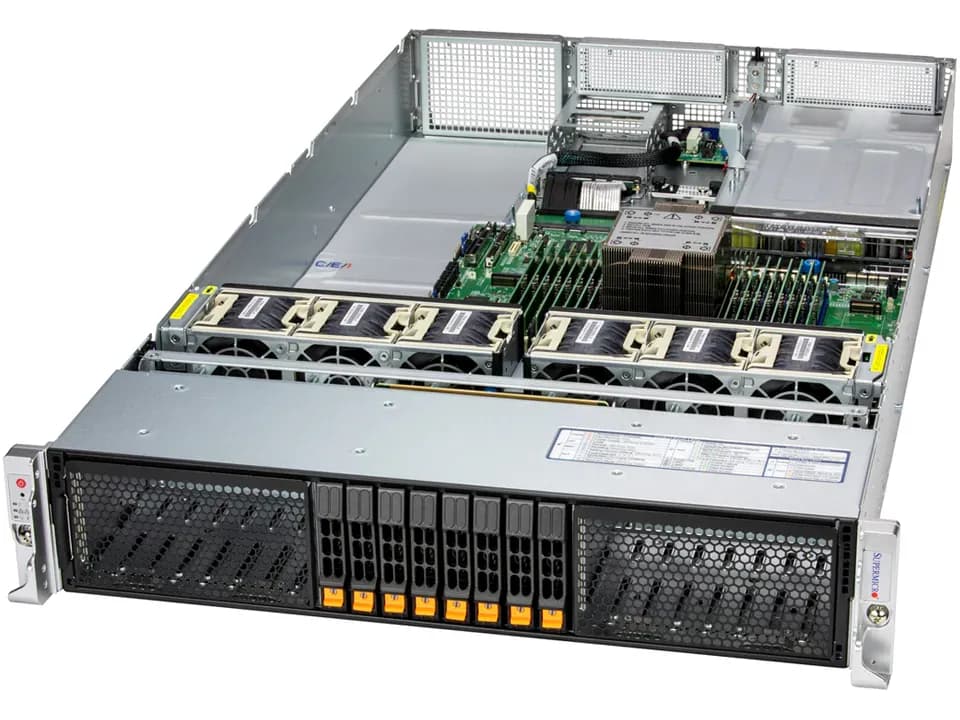

SuperServer SYS-212H-TN

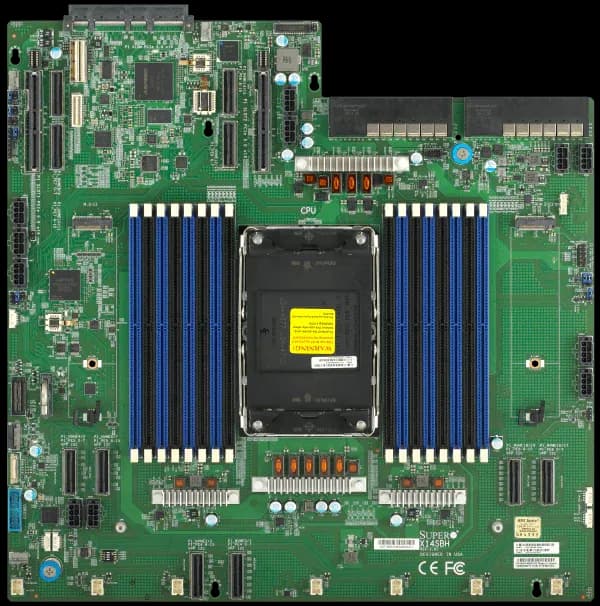

Motherboard

Super X14SBH

Processor

CPU

Single Socket E2 (LGA-4710)

Intel® Xeon® 6 6700 series processors with E-cores

Core Count

Up to 144C/144T; Up to 108MB Cache

Note

Supports up to 330W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 1 double-width or 2 single-width GPU(s)

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

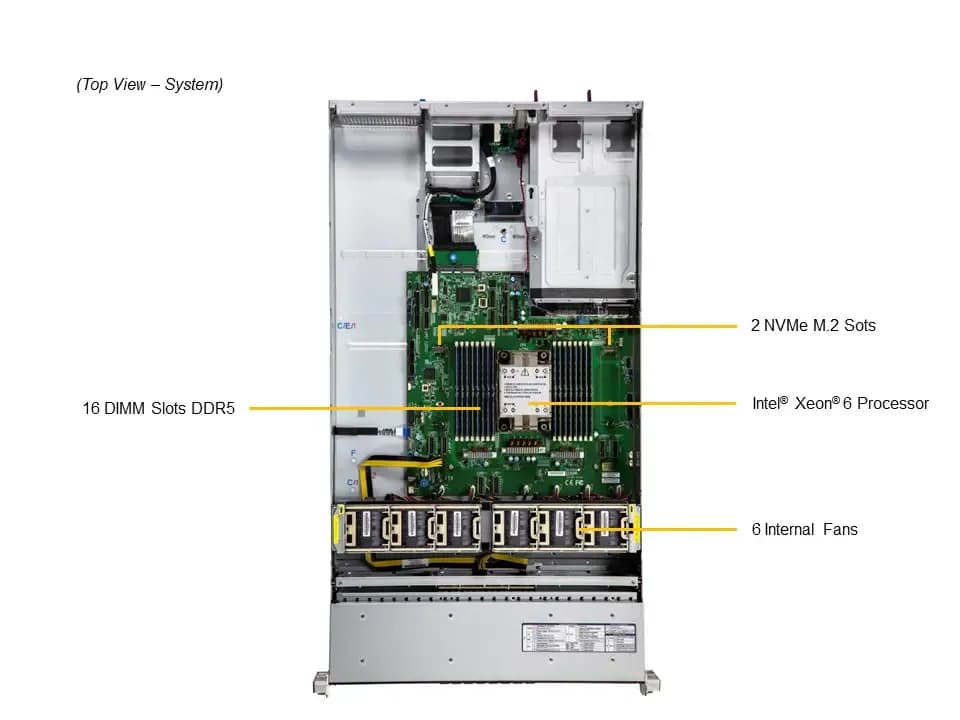

System Memory

Memory

Slot Count: 16 DIMM slots

Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM

Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM

View Memory Options

On-Board Devices

NVMe

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset

System on Chip

Network Connectivity

Via AIOM

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 64MB SPI Flash

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-HS201-R000NFP

Dimensions and Weight

Height

3.5″ (88.9 mm)

Width

17.2″ (437 mm)

Depth

31.74″ (806.2 mm)

Package

9.96″ (H) x 26.46″ (W) x 43.31″ (D)

Weight

Gross Weight: 75 lbs (34 kg)

Net Weight: 45 lbs (20.5 kg)

Available Color

Silver

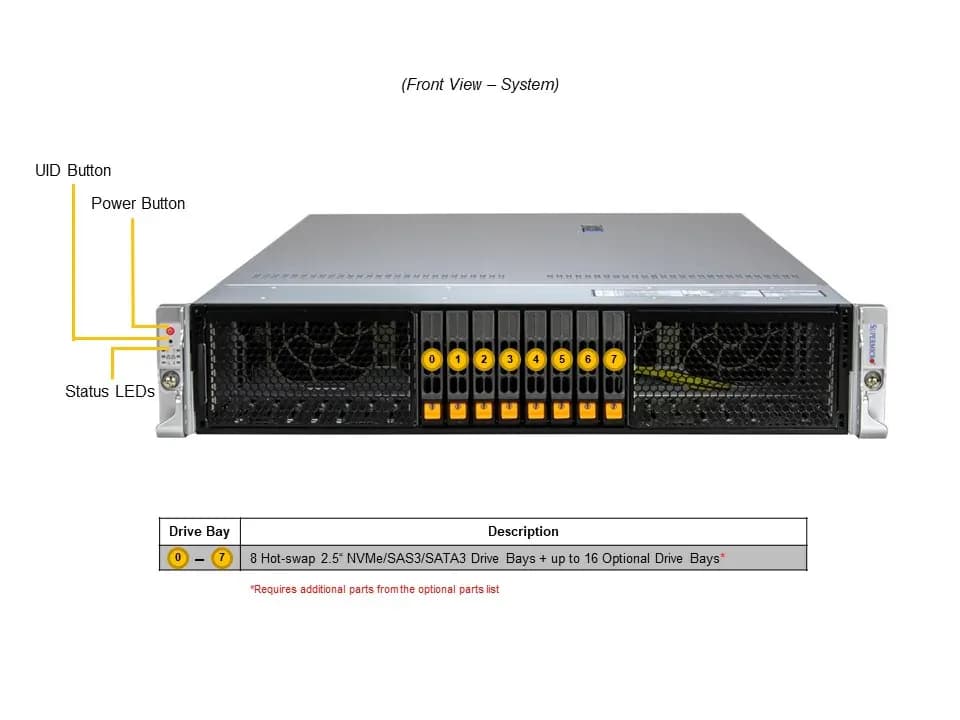

Front Panel

LED

HDD activity

LAN1 activity

Power status

System information

Buttons

Power On/Off

UID button

Expansion Slots

PCI-Express (PCIe) Configuration

Option A

1 PCIe 5.0 x16 FHFL double-width slot(s)

1 PCIe 5.0 x16 FH/10.5″L double-width slot(s)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B

1 PCIe 5.0 x16 FHFL double-width slot(s)

2 PCIe 5.0 x8 FH/10.5″L slot(s)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

View AOC Options

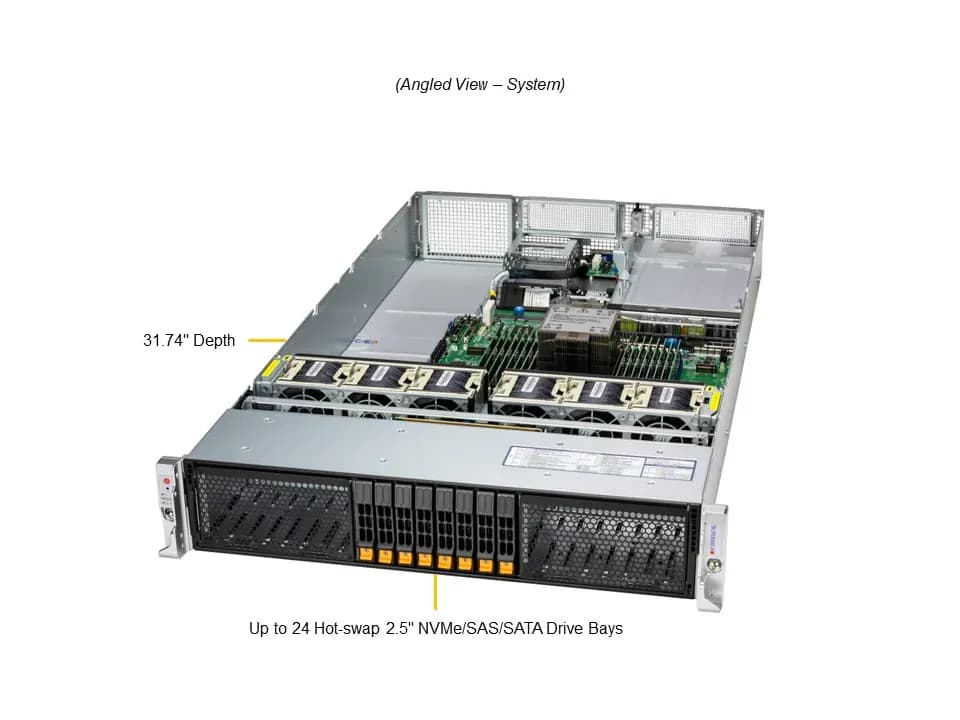

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)

Option A: Total 16 bay(s)

8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bay(s)

8 front hot-swap 2.5″ SAS*/SATA* drive bay(s)

Option B: Total 16 bay(s)

16 front hot-swap 2.5″ SAS*/SATA* drive bay(s)

Option C: Total 24 bay(s)

24 front hot-swap 2.5″ SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 NVMe slot(s) (M-key 2280/22110/25110; VROC required for RAID)

View M.2 Options

System Cooling

Fans

6 counter-rotating 60x60x56mm Fan(s)

Air Shroud

1 CPU Air Shroud(s)

Power Supply

2X 1200W

2X 1300W

2X 1600W

2X 2600W

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

800W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 230-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 66.7A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vac-240Vac)

Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)

12V SB

Max: 2.1A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
