Key Applications

Virtualization

Software-defined Storage

AI Inference and Machine Learning

Cloud Computing

Enterprise Server

Key Features

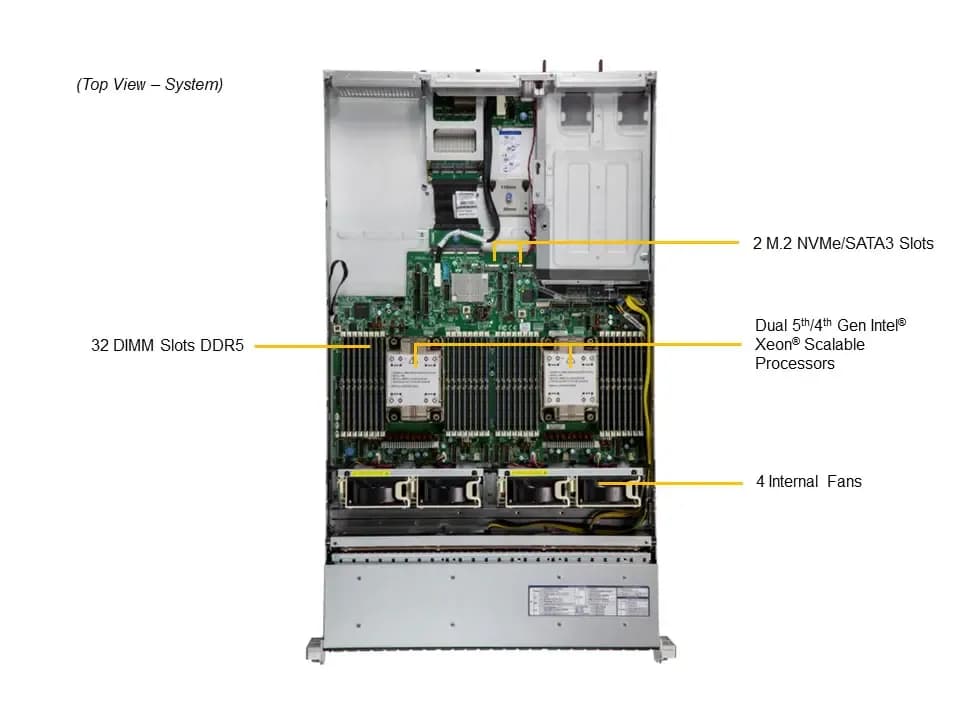

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors

32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600

Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards

Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)

4 heavy duty hot-swap fans with optimal fan speed control

Product SKUs

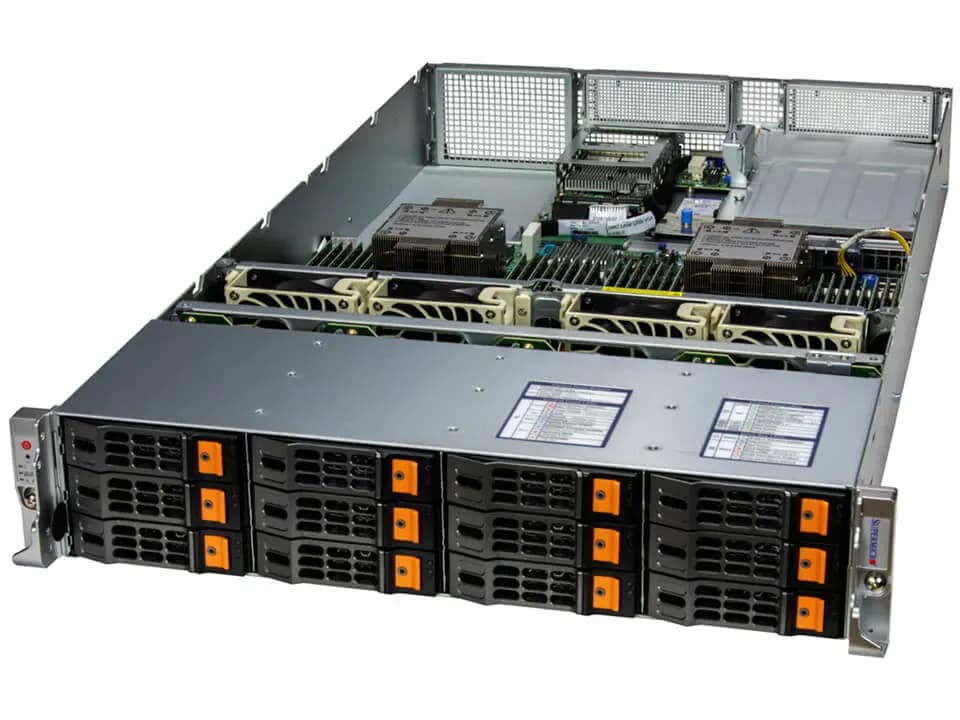

SuperServer SYS-621H-TN12R

Motherboard

Super X13DEM

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​

Core Count

Up to 64C/128T; Up to 320MB Cache per CPU

Note

Supports up to 350W TDP CPUs (Air Cooled)

Supports up to 350W TDP CPUs (Liquid Cooled)​

GPU

Max GPU Count

Up to 4 double-width or 4 single-width GPU(s)

Supported GPU

NVIDIA PCIe: H100, L40S, A40, A100

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

PCIe

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

View Memory Options

Memory Voltage

1.1V

On-Board Devices

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

View NVMe Options

Chipset

Intel® C741

Network Connectivity

Via AIOM

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 2.0 port(s) (rear)

2 USB 3.0 port(s) (Header)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 256MB SPI Flash

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-HS829-R1K24P

Dimensions and Weight

Height

3.5″ (88.9 mm)

Width

17.2″ (437 mm)

Depth

31.6″ (803 mm)

Package

10.4″ (H) x 23.8″ (W) x 43.6″ (D)

Weight

Gross Weight: 63 lbs (28.6 kg)

Net Weight: 37 lbs (16.8 kg)

Available Color

N/A

Front Panel

LED

HDD activity

LAN1 activity

Power

System information

Buttons

Power On/Off

UID button

Expansion Slots

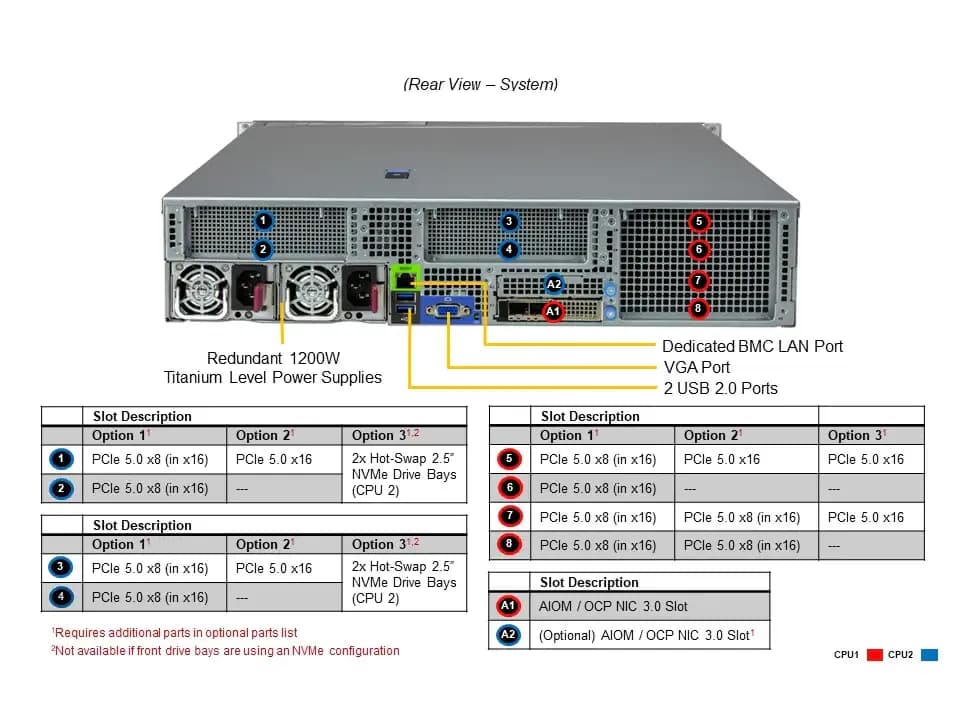

PCI-Express (PCIe) Configuration

Option A*

4 PCIe 5.0 x16 (in x16) FH/10.5″L double-width slot(s)

2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B*

8 PCIe 5.0 x8 (in x16) HH/10.5″L slot(s)

2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

View AOC Options

M.2

2 M.2 NVMe/SATA slot(s) (B+M-key 2280/22110)

Drive Bays / Storage

Drive Bays Configuration

Default: Total 12 bay(s)

12 front hot-swap 3.5″ NVMe*/SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

4x 8cm heavy duty fans with optimal fan speed control

Air Shroud

2 Air Shroud(s)

Liquid Cooling

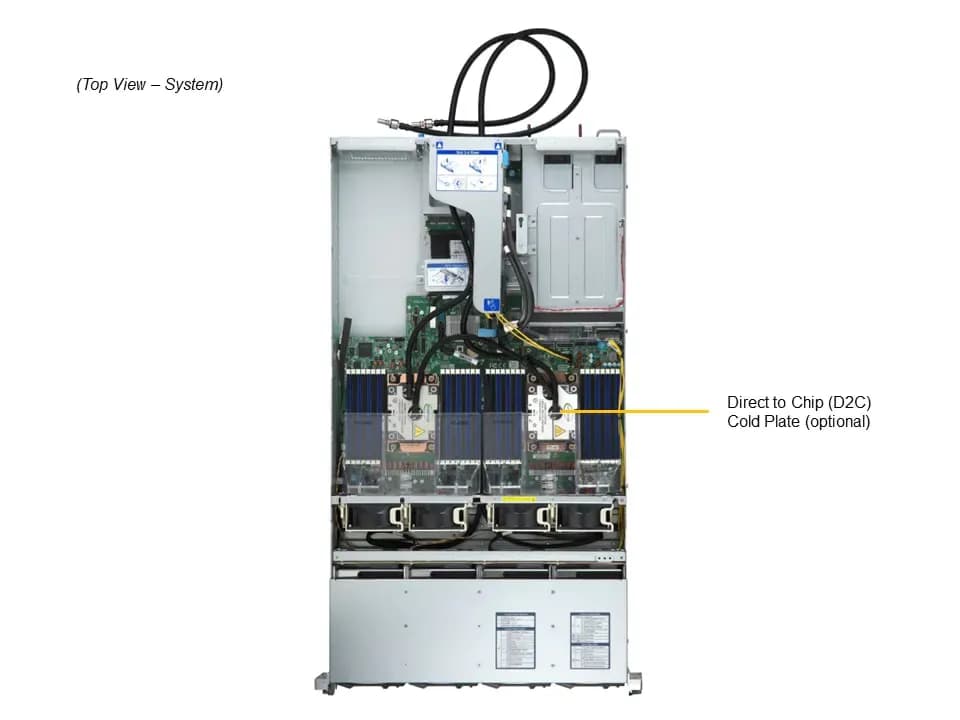

Direct to Chip (D2C) Cold Plate (optional)

Power Supply

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

800W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 230-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 66.7A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vac-240Vac)

Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)

12V SB

Max: 2.1A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Environmental / Recycling

Recycle

Return Server-End of Life Product
