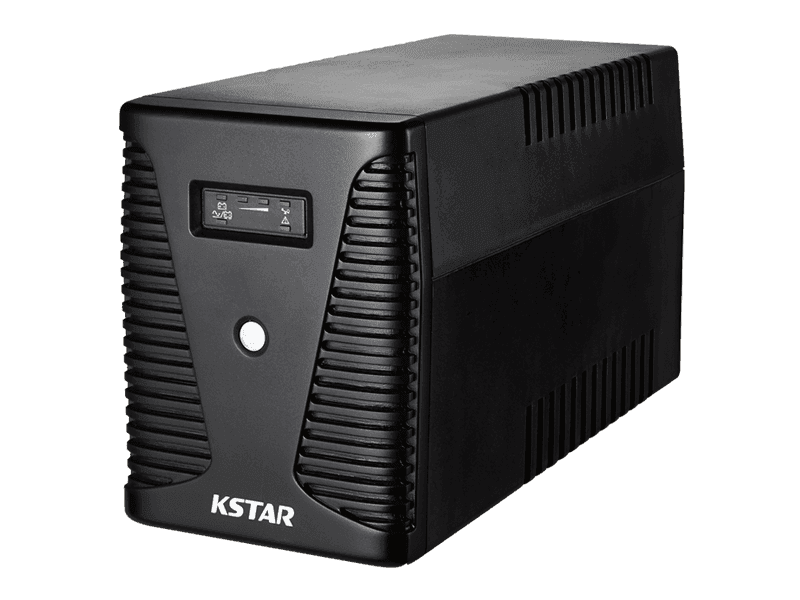

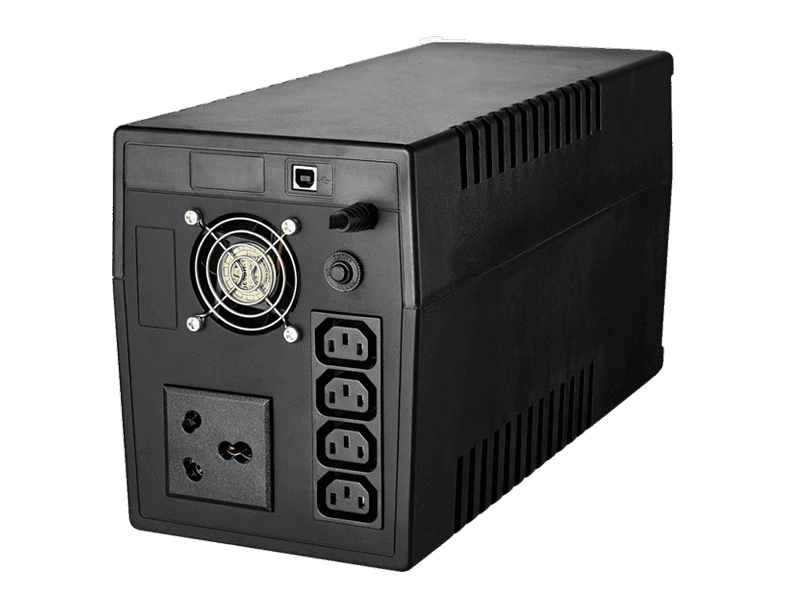

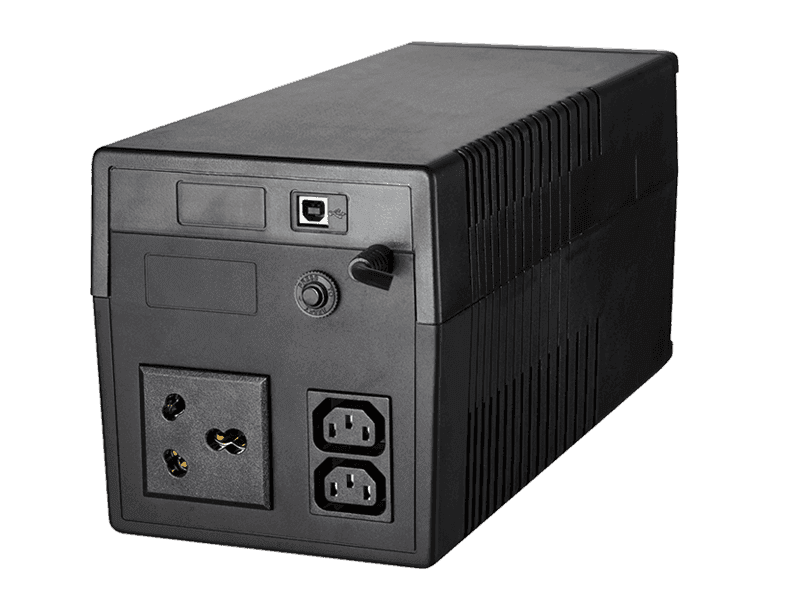

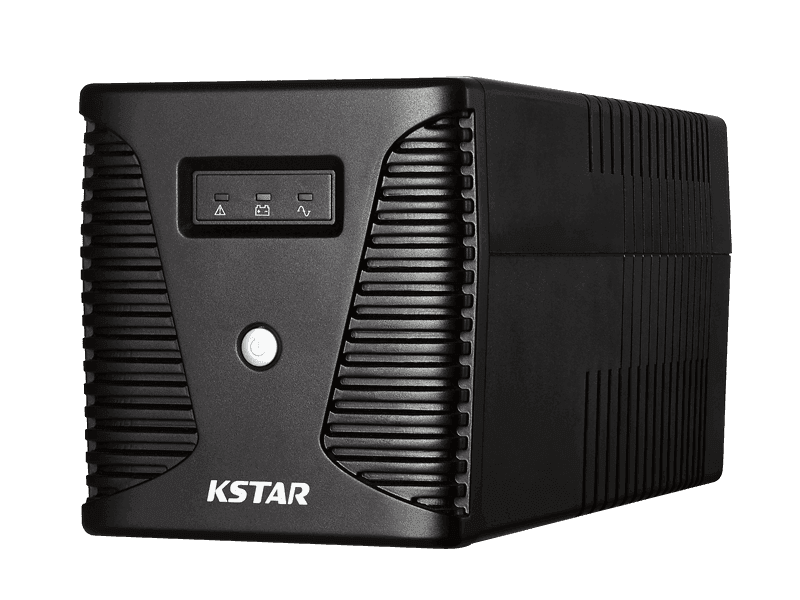

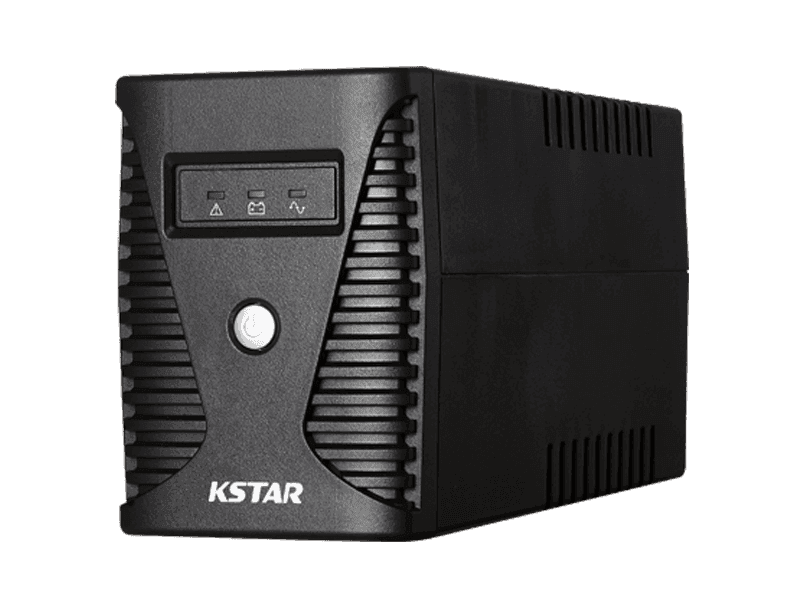

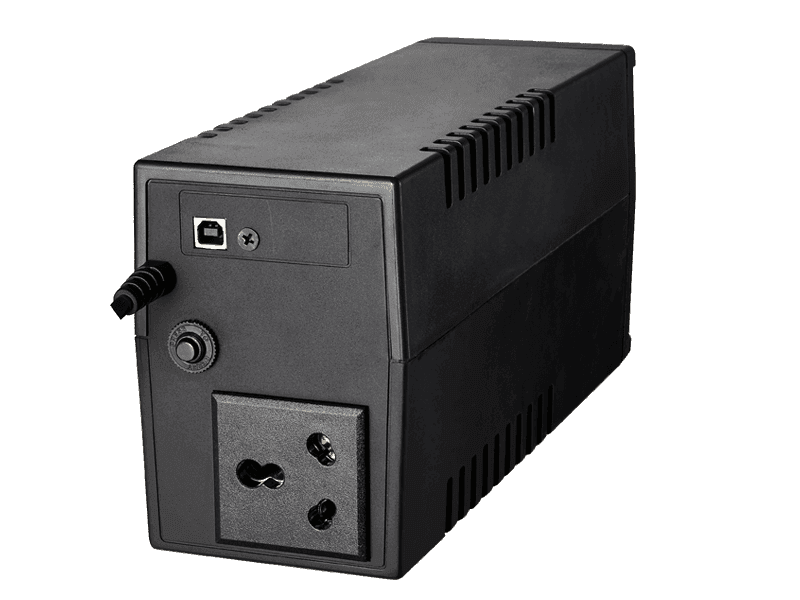

UA series line interactive UPS designed with excellent charging mode. It not only offers great comprehensive power protection against surges and spikes, but also provides pure voltage with AC voltage stabilizer. It is easy to install&operate. With compact size and built-in self-diagnostic function, It is an ideal backup power for termianl equipment, PC, station, SOHO equipments.

UA series line interactive UPS designed with excellent charging mode. It not only offers great comprehensive power protection against surges and spikes, but also provides pure voltage with AC voltage stabilizer. It is easy to install&operate. With compact size and built-in self-diagnostic function, It is an ideal backup power for termianl equipment, PC, station, SOHO equipments.

General Features

● AVR boost and buck

● Cold start function

● Smart RS-232/USB interface for power management

● Built-in self-diagnostic function

● Modem/LAN internet protection

● Generator compatible(Optional)

Technical Specification

Model

UA40

UA60

UA80

UA100

UA120

UA150

UA200

UA240

UA300

Capacity

(VA/Watts)

400  / 240

600/ 360

800  /480

1000/ 600

1200/ 720

1500 / 900

2000 / 1200

2400/ 1440

3000 / 1800

INPUT

Nominal Input

Voltage

110/120Vac or 220/230/240 Vac

Operating

Voltage Range

81-145Vac/162-290 Vac

Operating

FrequencyRange

50/60 Hz (1±10%)

OUTPUT

Output Voltage

range

(Batt. Mode)

Simulated Sinewave  at nominal voltage ±10%

Frequency Range

(Batt. Mode)

50 Hz or 60 Hz ± 1 Hz

Transfer Time

Typical 2-6 ms, 10ms max.

BATTERY

Battery Type

& Number

12V/4.5Ah x 1

12V/7Ah x 1

12V/9Ah x 1

12V/7Ah x 2

12V/7Ah x2

12V/9Ah x 2

12V/9Ah x 2

12V/7Ah x 4

12V/9Ah x 4

Typical Recharge

Time

6-8 hours ( To 90%  capacity)

PROTECTION

Full Protection

Overload and overcharge protection

INDICATORS

Indicators

AC Mode, Battery Mode, Load Level, Battery Level

AC Mode, Battery

Mode, Load Level,

Battery Level, Input

Voltage, Output

Voltage, Overload,

Fault, Battery Low

ALARM

Battery Mode

Sounding every 10 seconds

Battery Low

Sounding every second

Overload

Sounding every 0.5 second

Battery

Replacement

Alarm

Sounding every 2 seconds

Fault

Continuously sounding

Management

USB & RS-232

port(Optional)

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Environment

Operating

Temperature

0- 40°C

Humidity Range

0-95 % (Non-condensing)

Noise Level

<40db (1 meter from surface)

PHYSICAL

Dimension,

W x D x H (mm)

101×298×142

149.3×338×162

158×380×198

144×432.5×207

Net Weight (kg)

3.55

4.25

4.9

7.8

8

11.1

11.5

20

23

STANDARDS

Safety

IEC/EN62040-1;IEC/EN60950-1

EMC

IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8
