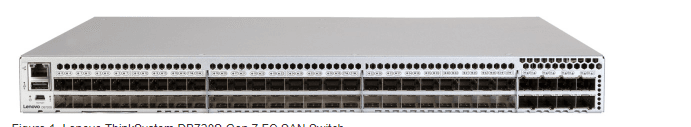

Models The following table lists the ThinkSystem DB720S FC SAN Switch models. Table 2. Lenovo ThinkSystem DB720S FC SAN Switch models Part Number Machine Type-Model Feature code 7D5JCTO1WW 7D5JA000WW BF60 7D5JCTO2WW 7D5JA001WW BF61 7D5JCTO3WW 7D5JA002WW BF62 7D5JCTO4WW 7D5JA003WW BF63

Models

The following table lists the ThinkSystem DB720S FC SAN Switch models.

Table 2. Lenovo ThinkSystem DB720S FC SAN Switch models

Part Number

Machine Type-Model

Feature code

7D5JCTO1WW

7D5JA000WW

BF60

7D5JCTO2WW

7D5JA001WW

BF61

7D5JCTO3WW

7D5JA002WW

BF62

7D5JCTO4WW

7D5JA003WW

BF63

System specifications

The following table lists the ThinkSystem DB720S system specifications.

Table 1. System specifications

Component

Specification

Machine type

7D5J

System Architecture

Fibre Channel Ports

Switch mode (default): Minimum of 24 ports and maximum of 56 ports. Ports are enabled in increments of 8 ports up to 56 ports via Ports on Demand (PoD) licenses; E_Ports, F_Ports, M_Ports, D_Ports, EX_Ports.Brocade.

Access Gateway default port mapping: 56 SFP+ F_Ports, 8 SFP+ N_Ports.

The SFP+ ports are capable of auto-negotiating to 8, 16, 32, or 64Gb/s speeds depending on the SFP+ model and the minimum supported speed of the optical transceiver at the other end of the link.

Scalability

Full-fabric architecture with a maximum of 239 switches

Certified maximum

4K active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics

Performance

Non-blocking architecture with wire-speed forwarding of traffic:

8GFC: 8.5 Gb/sec line speed, full duplex

10GFC: 10.53Gb/s line speed, full duplex; 10Gb/s optionally programmable to fixed port speed.

16GFC: 14.025 Gb/sec line speed, full duplex

32GFC: 28.05 Gb/sec line speed, full duplex

64GFC: 57.8 Gb/sec line speed, full duplex

Traffic load balancing

Frame-based ISL Trunking load balances supports up to eight SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk when using 64Gb/s optics

Dynamic Path Selection (DPS) provides exchange-based load balancing across all available ISLs.

Aggregate bandwidth

3.584Tb/s

Maximum fabric latency

Latency for locally switched ports is 460 ns (including FEC).

Maximum frame size

2112-byte payload

Frame buffers

24K per switching ASIC

Classes of service

Class 2, Class 3, Class F (inter-switch frames)

Port types

D_Port (ClearLink® Diagnostic Port), E_Port, EX_Port, F_Port, M_Port

Optional port-type control

Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port

Data traffic types

Fabric switches supporting unicast

Media types

64Gb/s: Brocade Secure hot-pluggable SFP+, LC connector; 64Gb/s SWL.

32Gb/s: Brocade Secure hot-pluggable SFP+, LC connector; 32Gb/s SWL, LWL 10 km, ELWL 25 km.

10Gb/s: Brocade Secure hot-pluggable SFP+, LC connector; 10Gb/s SWL, LWL 10 km.

Fibre Channel distance is subject to fiber-optic cable and port speed.

USB port

One standard USB port for firmware download, support save, and configuration upload or download.

Fabric services

Fabric Vision; Monitoring and Alerting Policy Suite (MAPS); Flow Vision; Brocade Adaptive Networking (QoS); Fabric Performance Impact (FPI) Monitoring; Slow Drain Device Quarantine (SDDQ); Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning, peer zoning, target-driven zoning); Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Brocade Extended Fabrics; Enhanced BB Credit Recovery; FDMI; Frame Redirection; Frame-based Trunking; FSPF; Integrated Routing; IPoFC; Brocade ISL Trunking; Management Server; NPIV; Time Server; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Simple Name Server (SNS); Virtual Fabrics (Logical Switch, Logical Fabric); Read Diagnostics Parameter (RDP).

Access Gateway mode: Some fabric services do not apply or are unavailable in Access Gateway mode.

Extension

Fibre Channel, in-flight compression (Brocade LZO) and encryption (ES-GCM-256 encryption on FC ISLs, E_Port); integrated optional 10Gb/s Fibre Channel for DWDM MAN connectivity.

Power supplies

Dual, hot-swappable redundant power supplies (80 PLUS Gold) with integrated system cooling fans (3 built into each power supply), N+N cooling redundancy.

Management

Supported management software

HTTP; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; Auditing; Syslog; NTP v3; Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View (optional license); EZSwitchSetup; Command Line Interface (CLI); SMI-S compliant; REST API; Administrative Domains; trial licenses for add-on capabilities.

Security

DH-CHAP (between switches and end devices); FCAP switch authentication; HTTPS; IP filtering; LDAP with IPv6; OpenLDAP; Port Binding; RADIUS; TACACS+; user-defined Role-Based Access Control (RBAC); Secure Boot, Secure Copy (SCP); Secure Syslog; Secure FTP (SFTP); Secure Shell (SSH) v2; Secure Socket Layer (SSL); Switch Binding; Trusted Switch.

Management access

10/100/1000Mb/s Ethernet (RJ-45), serial console port (mini-USB).

Diagnostics

ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; flow mirroring; built-in flow generator; POST and embedded online/offline diagnostics, including environmental monitoring; FCping and Pathinfo (FC traceroute); frame viewer; non-disruptive daemon restart; optics health monitoring; power monitoring; RAStrace logging; and Rolling Reboot Detection (RRD).

Mechanical

Enclosure

Front-to-back airflow; non-port-side exhaust; power from back, 1U

Back-to-front airflow; non-port-side intake; power from back, 1U

Dimensions

Width: 440 mm (17.3 in.)

Height: 44 mm (1.7 in.)

Depth: 356 mm (14.0 in.)

Weight

7.17 kg (15.8 lb) with two power supply FRUs, without transceivers

Support

Warranty

Three-year customer-replaceable unit limited warranty with 9×5 next business day parts delivered. Three-year software/firmware entitlement.

Service and support

Optional service upgrades are available through Lenovo Services: 9×5 next business day onsite response, 24×7 2-hour or 4-hour onsite response, 24×7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services
