With DM Series all-flash systems you will: Get up to 5M IOPS in one cluster Support 2x more workloads and cut application response times Future proof and accelerate your system with end-to-end NVMe capability

With DM Series all-flash systems you will:

Get up to 5M IOPS in one cluster

Support 2x more workloads and cut application response times

Future proof and accelerate your system with end-to-end NVMe capability

Tech Specs

DESCRIPTION

SPECIFICATIONS

DM7100F

DM5100F

DM7000F

DM5000F

NAS Scale-out

12 High Availability pairs

Maximum SSDs

5760 (576 NVMe + 5184 SAS)

576 NVMe

4608

1728

Maximum Raw Capacity: All Flash

88PB* / 78.15PiB*

8.84PB / 7.85PiB

70.5PB / 62.6PiB

24.1PB / 21.5PiB

Effective Capacity (based on 3:1)

264PB / 234.45PiB

26.43PB / 23.47PiB

211.5PB / 187.84PiB

72.3PB / 64.2PiB

Maximum Memory

3072GB

1536GB

3072GB

768GB

SAN Scale-out

6 High Availability pairs

Maximum SSDs

2880 (288 NVMe + 2592 SAS)

288 NVMe

2304

864

Maximum Raw Capacity

44PB / 39.08PiB

4.42PB / 3.92PiB

35.3PB / 31.3PiB

13.2PB / 11.7PiB

Effective Capacity

132PB / 117.24PiB

17PB / 15.1PiB

105.9PB / 94PiB

39.6PB / 35.17PiB

Maximum Memory

1536GB

768GB

1536GB

384GB

Cluster Interconnect

2x 100GbE

4x 25GbE

4x 10GbE

4x 10GbE

Per High Availability Array Specifications

Active-Active Controller

Maximum SSDs

480 (48 NVMe + 432 SAS)

48 NVMe

384

144

Maximum Raw Capacity: All-Flash

7.37PB / 6.55PiB

737.28TB / 670.29TiB

5.9PB / 5.2PiB

2.2PB / 1.9PiB

Effective Capacity

22.11PB / 19.65PiB

2.11PB / 1.87PiB

17.7PB / 15.7PiB

6.6PB / 5.8PiB

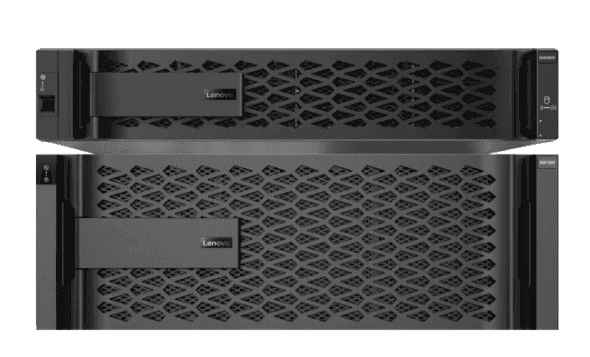

Controller Form Factor

4U chassis with two High Availability controllers

2U chassis with two High Availability controllers and 24 NVMe SSD slots

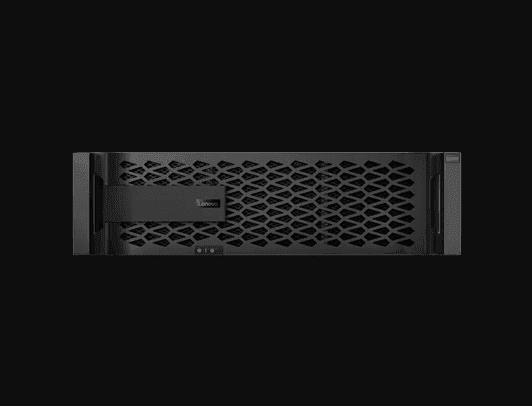

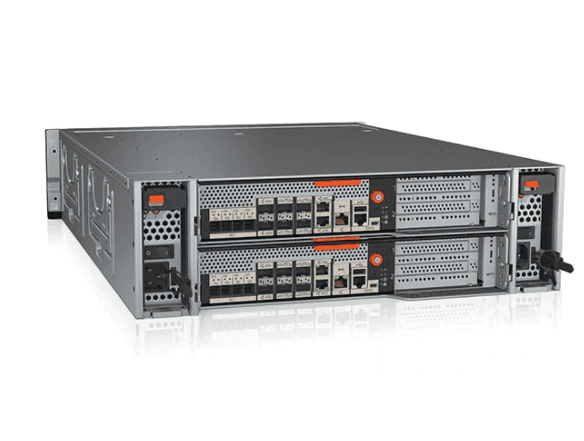

3U chassis with two High Availability controllers

2U chassis with two High Availability controllers and 24 SSD slots

Memory

256GB

128GB

256GB

64GB

NVRAM

32GB

16GB

16GB

8GB

PCIe Expansion Slots (maximum)

10

4

4

Not applicable

FC Target Ports (32Gb autoranging, maximum)

24

32

8

Not applicable

FC Target Ports (16Gb autoranging, maximum)

8

Not applicable

24

8

40GbE Ports (maximum)

Not applicable

Not applicable

8

Not applicable

25GbE Ports

20

32

Not applicable

Not applicable

10GbE Ports (maximum)

32

Not applicable

32

8

100GbE ports (40GbE autoranging)

12

8

Not applicable

Not applicable

10GbE BASE-T Ports (1GbE autoranging) (maximum)

16

4

12

8

12Gb / 6Gb SAS Ports (maximum)

24

Not applicable

24

4

Cluster Interconnect

2x 100GbE

4x 25GbE

4x 10GbE

4x 10GbE

Storage Networking Supported

FC, iSCSI, NFS, pNFS, SMB, NVMe/FC

FC, iSCSI, NFS, pNFS, SMB, NVMe/FC

FC, iSCSI, NFS, pNFS, SMB, NVMe/FC

FC, iSCSI, NFS, pNFS, SMB

OS Version

ONTAP 9.7 or later

ONTAP 9.8 or later

ONTAP 9.4 or later

ONTAP 9.4 or later

Shelves and Media

DM240N, DM240S

DM240N

DM240S

DM240S

Host/Client OSes Supported

Microsoft Windows, Linux, VMware ESXi

DM Series ALL-Flash Software

The ONTAP 9 software bundle includes a set of products that delivers leading data management, storage efficiency, data protection, high performance, and advanced capabilities such as instant cloning, data replication, application-aware backup and recovery, and data retention. For more details, visit the ONTAP datasheet.

* SAS+NVMe SSD scale out
