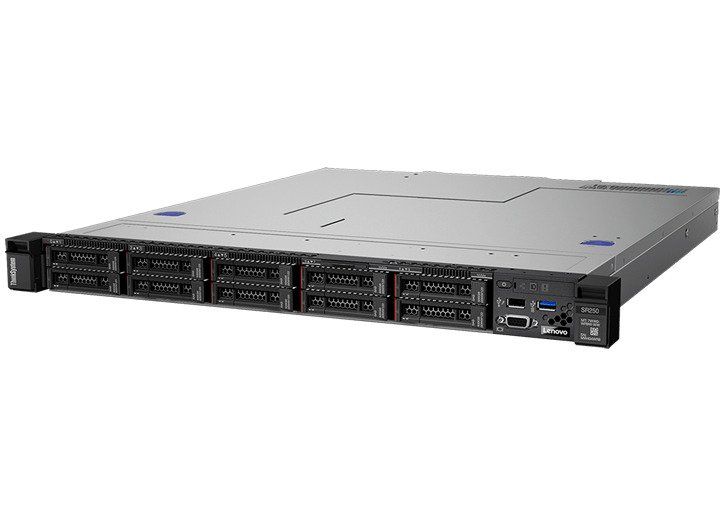

Affordable, efficient enterprise power in 1U The ThinkSystem SR250 is a single-socket compact 1U rack server that offers the power, reliability, and flexibility for the hybrid cloud.

Affordable, efficient enterprise power in 1U

The ThinkSystem SR250 is a single-socket compact 1U rack server that offers the power, reliability, and flexibility for the hybrid cloud.

DESCRIPTION

SPECIFICATIONS

Form Factor

1U rack, Height: 43mm (1.69 inches), Width: 435mm (17.13 inches), Depth: 545mm (21.5 inches)

Processor (max)

1-socket Intel® Xeon® E-2200 processors, up to 8 cores at 95W

Memory

Up to 128GB of 2666MHz TruDDR4 ECC UDIMMs (4 slots)

Disk Bays – Maximum Internal Storage

4x 3.5-inch simple- or hot-swap SATA drives

4x 2.5-inch simple-swap SATA/SAS drives

10x 2.5-inch hot-swap SATA/ SAS/ SSD drives

8 x 2.5-inch hot swap SATA/SAS/SSD drives + 2 x 2.5-inch NVMe drives

RAID Support

Intel VROC Software RAID supports simple swap and hot swap

Multiple RAID configurations (common with ThinkSystem)

Power Supply

Fixed power supply unit 300W Gold, dual redundant AC (450W, Platinum)

Network Interface

2x 1GbE ports embedded, 1x 1GbE dedicated management

Expansion Slots

2x PCIe Gen3 x8 slots or 1x PCIe Gen3 x16 slot

1x PCIe Gen3 x8 (x4 interface) internal RAID slot

USB Ports/VGA Ports

Front: 1x USB 2.0, 1x USB 3.1 Gen1, support XCC mobile

Rear: 2x USB 3.1 Gen1, 1x Serial COM, 1x VGA

Systems Management

Lenovo XClarity Administrator with mobile option, support for TPM 2.0

Operating Systems Supported

Microsoft, Red Hat, SUSE, and VMware ESXi

Limited Warranty

1-year or 3-year warranty
