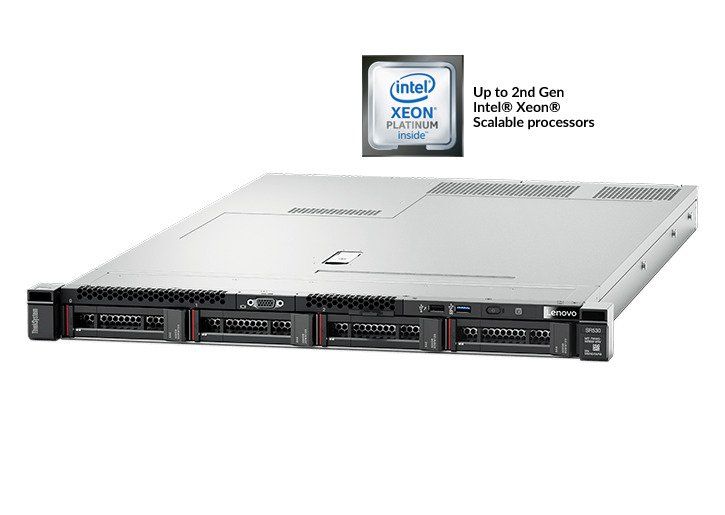

Affordable 1U rack server optimized for enterprise ThinkSystem SR530 is an ideal budget-friendly, two-processor, 1U rack server, designed to tackle entry cloud, hosting, file serving, and scale-out workloads.

Affordable 1U rack server optimized for enterprise

ThinkSystem SR530 is an ideal budget-friendly, two-processor, 1U rack server, designed to tackle entry cloud, hosting, file serving, and scale-out workloads.

DESCRIPTION

SPECIFICATIONS

Form Factor/Height

1U rack server

Number of Processors

Up to 2x second-generation Intel® Xeon® Platinum processor, up to 125W

Memory

Up to 768GB in 12x slots, using 64GB DIMMs; 2666MHz / 2933MHz TruDDR4

Expansion Slots

Up to 3x PCIe 3.0, via multiple riser options (either all-PCIe, or PCIe and ML2)

Drive Bays

8x 2.5″ hot-swap SAS/SATA; or 4x 3.5″ hot-swap SAS/SATA; or 4x 3.5″ simple-swap SATA; up to 2x M.2 boot (optional RAID 1)

HBA/RAID Support

SW RAID standard; optional HBA or HW RAID with flash cache

Security/Availability

Lenovo ThinkShield, TPM 1.2/2.0; redundant PSUs; front-access diagnostics via dedicated USB port

Network Interface

2x 1GbE ports + 1x dedicated 1GbE management port (standard); optional modular LOM supports 2x 1GbE Base-T or 2x 10GbE with Base-T or SFP+

Power

2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium

Systems Management

XClarity Controller, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager

OSes Supported

Microsoft Windows Server, SUSE, Red Hat, VMware vSphere.

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9×5
