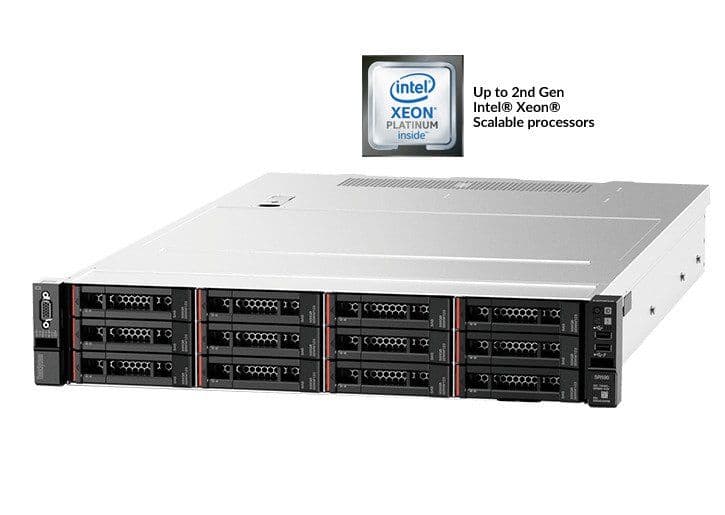

Affordable, all-purpose rack server for local/remote sites The 2U ThinkSystem SR550 2P rack server is designed for a balance of processing power, storage capacity, and cost. It provides selectable I/O options and tiered systems management.

Affordable, all-purpose rack server for local/remote sites

The 2U ThinkSystem SR550 2P rack server is designed for a balance of processing power, storage capacity, and cost. It provides selectable I/O options and tiered systems management.

DESCRIPTION

SPECIFICATIONS

Form Factor/Height

2U rack/server

Processors

Up to 2 second-generation Intel® Xeon® Platinum processor, up to 125W

Memory

Up to 768GB in 12x slots, using 64GB DIMMs; 2666MHz / 2933MHz TruDDR4

Expansion Slots

Up to 6x PCIe 3.0 (with 2x processors) via multiple riser options (PCIe-only or PCIe + ML2)

Drive Bays

Up to 16x hot-swap 2.5″ or 12x hot-swap 3.5” or 8x simple-swap 3.5″; plus up to 2x mirrored M.2 boot (optional RAID 1)

HBA/RAID Support

Software RAID standard (up to 8 ports); up to 16-port HBAs/or HW RAID with flash cache

Security and Availability Features

Lenovo ThinkShield, TPM 1.2/2.0; PFA; Hot-swap/redundant drives and PSUs; front-access diagnostics via dedicated USB port; optional redundant cooling

Network Interface

2x 1GbE ports + 1x dedicated 1GbE management port (standard); 1x optional 10GbE LOM

Power

2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium

Systems Management

XClarity Controller, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager

OSes Supported

Microsoft, SUSE, Red Hat, VMware.

Limited Warranty

1-year and 3-year customer replaceable unit and onsite service, next business day 9×5
