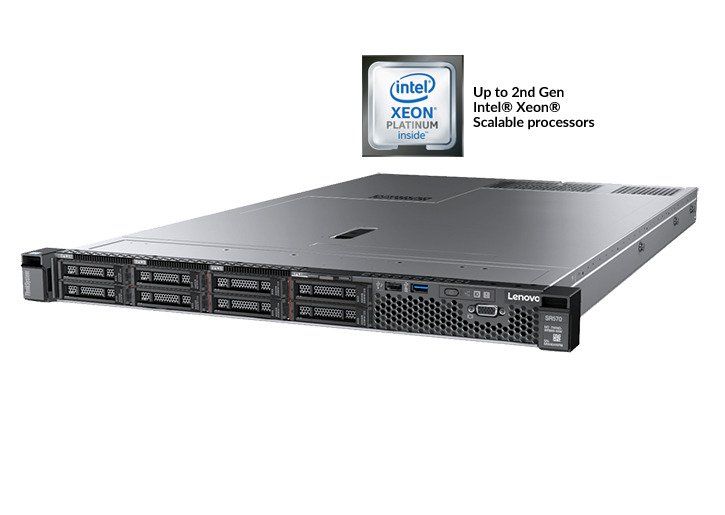

Powerful, affordable 1U/2S rack server Budget-friendly 1U rack server, offering high availability, high reliability, high performance, high security, easy management, and quick servicing

Powerful, affordable 1U/2S rack server

Budget-friendly 1U rack server, offering high availability, high reliability, high performance, high security, easy management, and quick servicing

DESCRIPTION

SPECIFICATIONS

Form Factor

1U

Processor

Up to 2 second-generation Intel® Xeon® Platinum processor 150W, up to 26 cores per CPU

Memory

Up to 1TB of 2933MHz TruDDR4 in 16 slots, Intel® Optane™ DC Persistent Memory

Expansion Slots

Up to 3 PCIe 3.0

Drive Bays

Up to 10x 2.5″ (including optional 4x direct-connect AnyBay) or up to 4x 3.5″

Internal Storage

Up to: 48TB (3.5″ SAS/SATA HDD); 30.72TB (3.5″ SATA SSD); 24TB (2.5″ SAS/SATA HDD); 76.8TB (2.5″ SSD); 30.72TB (2.5″ NVMe); 1x or 2x M.2

Network Interface

2 GbE ports standard; LOM interface standard; optional ML2, PCIe

NIC Ports

2x GbE standard; 1x GbE dedicated management standard

Power

Up to 2x hot-swap/redundant 550W/750W Platinum, 750W Titanium

High-Availability Features

Hot-swap HDDs/SSDs/NVMe, hot-swap PSUs and fans, light path diagnostics, PFA for all major components, ASHRAE A4 support (with limits), optional XClarity Pro with Call Home feature

RAID Support

HW RAID 0, 1, 5 standard on hot-swap models; SW RAID 0, 1, 5 on simple-swap 3.5″ models

Security

Lenovo ThinkShield, locking bezel; locking top cover; TPM 2.1 standard; optional TCM (China only)

Management

XClarity Administrator; XClarity Controller (embedded hardware); optional XClarity Pro

OS Support

Microsoft, SUSE, Red Hat, VMware.

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9×5
