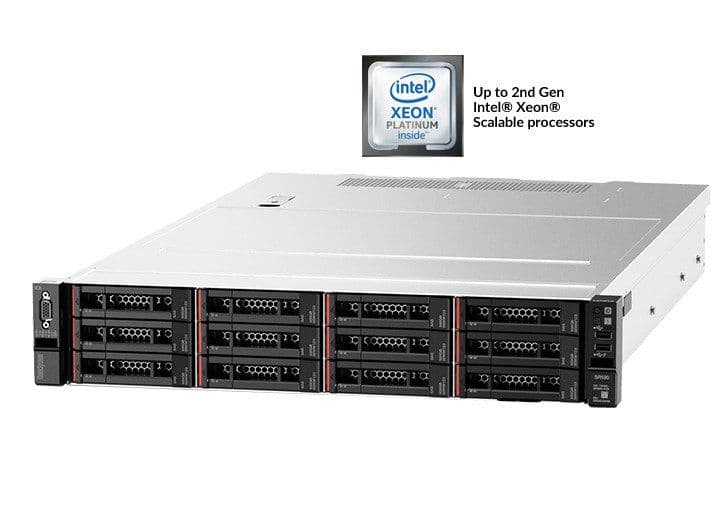

Powerful, budget-friendly 2U rack server Budget-friendly 2U rack server, offering high availability, high reliability, high performance, high security, easy management, and quick servicing

Powerful, budget-friendly 2U rack server

Budget-friendly 2U rack server, offering high availability, high reliability, high performance, high security, easy management, and quick servicing

DESCRIPTION

SPECIFICATIONS

Form Factor

2U

Processors

Up to 2 second-generation Intel® Xeon® Platinum processor 150W, up to 26 cores per CPU

Memory

Up to 1TB of 2933MHz TruDDR4 memory in 16 slots

Expansion Slots

Up to 6x PCIe 3.0 on replaceable riser cards for multiple I/O configurations

Drive Bays

Up to 16x 2.5″ or 14x 3.5″ hot-swap or up to 8x 3.5″ simple-swap; optional 4x AnyBay bays

Internal Storage

Up to: 168TB (3.5″ SAS/SATA HDD); 107.6TB (3.5″ SSD); 38.4TB (2.5″ SAS/SATA); 122.9TB (2.5″ SSD); 16TB (direct-connect 2.5″ NVMe); up to 2x M.2 boot drives

Network Interface

2 GbE ports standard; LOM interface standard; optional ML2

NIC Ports

2x GbE standard; 1x GbE dedicated management standard; optional up to 2x 1GbE, 2x 10GBase-T, or 2x 10GBase SFP+

Power Supply

Up to 2x hot-swap/redundant 550W/750W Platinum, 750W Titanium

High-Availability

Hot-swap HDDs/SSDs/NVMe, hot-swap PSUs and fans, light path diagnostics, PFA for all major components, ASHRAE A4 support (with limits), optional XClarity Pro with Call Home feature.

Security Features

ThinkShield, locking bezel; locking top cover; TPM 2.1 standard; optional TCM

RAID Support

HW RAID 0, 1, 10, 5, 50 standard on hot-swap models for 2.5″; SW RAID 0, 1, 10, 5 on simple-swap 3.5″ models

Management

XClarity Administrator; XClarity Controller (embedded hardware); optional XClarity Pro

OS Support

Microsoft, SUSE, Red Hat, VMware.

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9×5
