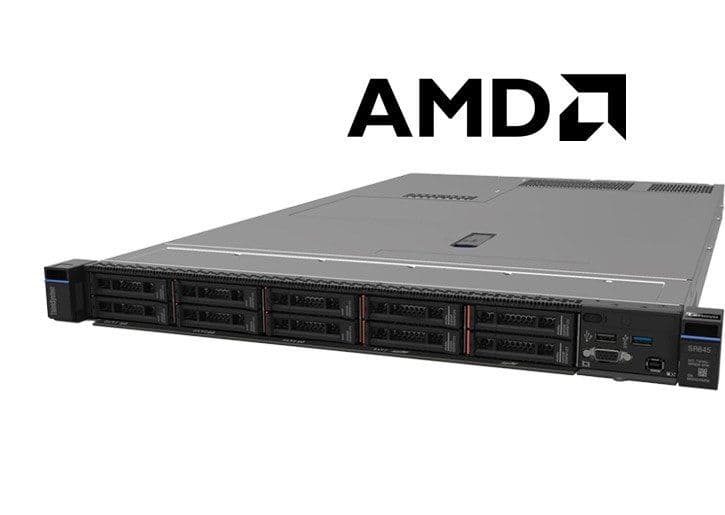

Standout versatility in 1U A versatile 1U/2P rack server for a variety of enterprise workloads.

Standout versatility in 1U

A versatile 1U/2P rack server for a variety of enterprise workloads.

ATTRIBUTE

SPECIFICATION

Form Factor

1U rack server

Processors

Up to two (2) AMD EPYC™ 7002 Generation Processors, up to 64C, 280W

Memory

32 DDR4 memory slots; Maximum 4TB using 128GB RDIMMs; 2DPC at 3200MHz

Drive Bays

Up to 4x 3.5-inch or 12x 2.5-inch drives; Maximum of 12x NVMe drives with 1:1 connection

Expansion Slots

Up to 3x PCIe 4.0 slots, 1x OCP 3.0 adapter slot

GPU

Up to 3x single-width 75W GPUs

Network Interface

OCP 3.0 mezz adapter, PCIe adapters

Power

Dual redundant PSUs (up to 1800W Platinum)

Ports

Front: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional)

Rear: 3x USB 3.1, 1x Serial port (optional), 1x RJ-45 (management)

Systems Management

Lenovo XClarity Controller

OS Support

Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi

Limited Warranty

1- and 3-year customer replaceable unit and onsite services, next business day 9×5, optional service upgrades
