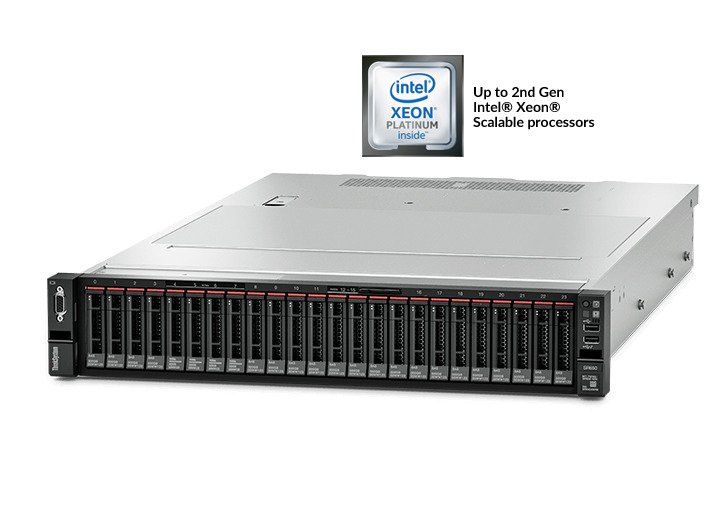

Top-performing server for data centers needing scalability Lenovo ThinkSystem SR650 is a 2-socket rack server designed for speed and expansion, with flexible storage and I/O, and industry #1 reliability for business-critical workloads.

Top-performing server for data centers needing scalability

Lenovo ThinkSystem SR650 is a 2-socket rack server designed for speed and expansion, with flexible storage and I/O, and industry #1 reliability for business-critical workloads.

DESCRIPTION

SPECIFICATIONS

Form Factor/Height

2U rack server

Processors

Up to 2 second-generation Intel® Xeon® Platinum processor, up to 205W

Memory

Up to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4

Expansion Slots

Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter

Drive Bays

Up to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1)

HBA/RAID Support

HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs

Security and Availability Features

TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port

Network Interface

2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port

Power (Energy Star 2.0 compliant)

2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum

Systems Management

XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported

Microsoft, Red Hat, SUSE, VMware.

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9×5, optional service upgrades
