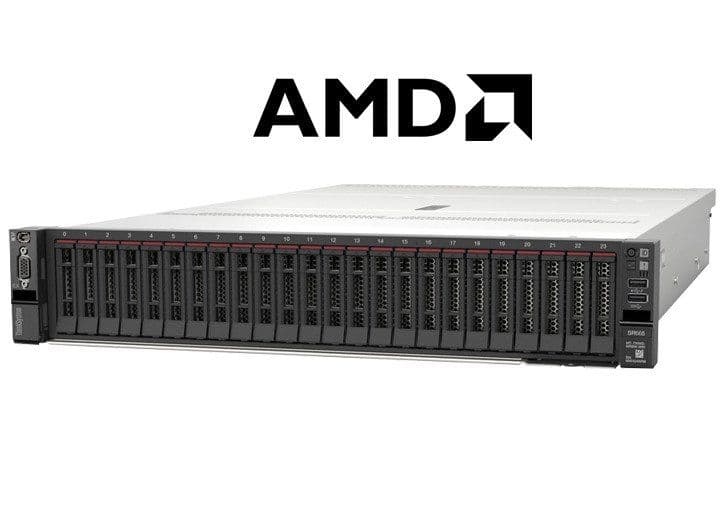

1P/2U Optimized for VDI and SDI ThinkSystem SR655 is a 2U/1P rack server optimized for GPU-intensive and software-defined workloads

1P/2U Optimized for VDI and SDI

ThinkSystem SR655 is a 2U/1P rack server optimized for GPU-intensive and software-defined workloads

DESCRIPTION

SPECIFICATIONS

Form Factor/Depth

2U / 764 mm (30 inches)

Processor

Choice of one AMD EPYC™ 7002 Generation processor, up to 280W

Memory

16x DDR4 memory slots; Maximum 1TB using 128GB 3DS RDIMMs; Up to 1 DPC at 3200MHz, 2 DPC at 2933MHz

Drive Bays

Up to 20x 3.5″ or 32x 2.5″ drives; Maximum of 32x NVMe drives with 1:2 connection

RAID Support

Hardware RAID flash cache; HBAs

Power Supply

Two hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W AC 80 PLUS Titanium

Network Interface

OCP 3.0 mezz adapter, PCIe adapters

Slots

8x PCIe rear slots, 1x OCP 3.0 adapter slot, 1x PCIe x8 internal slot

Ports

Front: 2x USB 3.1 G1 ports, 1x VGA (optional)

Rear: 1x VGA, 2x USB 3.1 G1, 1x Serial port; 1x RJ-45 1Gb for dedicated management

Systems Management

ASPEED AST2500 BMC, Partial XClarity support

Operating Systems

Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware vSphere.

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9×5, optional service upgrades
