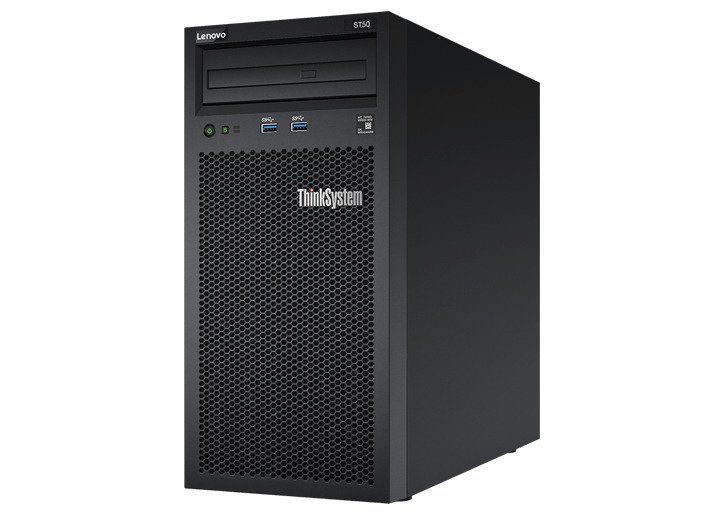

The optimal first server ThinkSystem ST50 is a compact, affordable, entry tower optimized for SMB, remote/branch offices, and small/home offices.

The optimal first server

ThinkSystem ST50 is a compact, affordable, entry tower optimized for SMB, remote/branch offices, and small/home offices.

DESCRIPTION

SPECIFICATIONS

Form Factor/Height

Tower; Optional 4U rack-mount kit; Height: 375mm (16.9 inches), Width: 175mm (6.9 inches), Depth 431mm (17 inches)

Number of Processors

1x Intel® Xeon® E-2200 processor, up to 6 cores at 95W

Memory

Up to 64GB in 4x UDIMM slots using 16GB DIMMs; 2666MHz TruDDR4

Drive Bays

4x; either 3x 3.5-inch + 1x 5.25-inch fixed, or 4x 3.5-inch fixed (the 4th requires the 5.25-inch to 3.5-inch optical drive conversion kit); support a mixed configuration with HDDs and SSDs; 5.25-inch bay supports optical or tape dirve (unless converted to 3.5-inch); single SD card (32GB) or dual-redundant SD cards (32GB / 64GB)

HBA/RAID Support

Intel VROC software RAID support; multiple hardware RAID configurations supported

I/O Interface

2x front USB 3.1 G1 ports; 2x rear USB 3.1 G1 ports and 2x rear USB 2.0 ports; 1x Serial port; 2x DisplayPorts (DP; optional for DP-to-VGA and DP-to-HDMI dongle); 1x audio line out (for Microsoft client OS only)

Network Interface

1x 1GbE RJ45 Ethernet port

Power

1x fixed 80 PLUS power supply up to Platinum efficiency; 250W or 400W

Systems Management

Intel AMT; Lenovo XClarity Provisioning Manager – USB version; TPM 1.2 embedded (upgradable to TPM 2.0)

OSes Supported

Microsoft, SUSE, Red Hat, VMware vSphere, CentOS;

Limited Warranty

1- and 3-year customer replaceable unit and onsite service, next business day 9×5, optional service upgrades
