Enterprise performance and flexibility. Compact footprint. ThinkSystem ST550 is a 4U tower server that provides the performance and reliability you expect from the data center, delivered in a package optimized for office environments.

Enterprise performance and flexibility. Compact footprint.

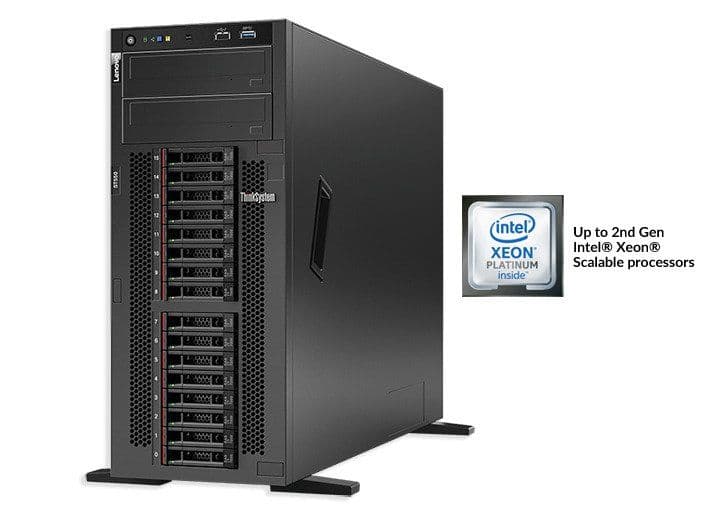

ThinkSystem ST550 is a 4U tower server that provides the performance and reliability you expect from the data center, delivered in a package optimized for office environments.

DESCRIPTION

SPECIFICATIONS

Form Factor/Height

4U rackable tower

Processor

Up to 2 second-generation Intel® Xeon® Platinum processor, up to 125W

Memory

Up to 768GB in 12x DIMM slots using 64GB DIMMs; 2666 and 2933MHz TruDDR4

Expansion Slots

Up to 6x PCIe 3.0 (with 2x processors)

Drive Bays

Up to 16x 2.5″ (including 4 NVMe) or 8x 3.5″ bays; Plus up to 4x 2.5″ and 2x internal M.2 boot

HBA/RAID Support

Software RAID (4x ports) standard; optional hardware RAID (up to 24x ports); up to 16-port HBAs

Security and Reliailability Features

Lenovo ThinkShield, lockable security bezel, Kensington lock slot, chassis intrusion switch, TPM 1.2/2.0, Predict Failure Analysis, hot-swap/redundant drives, redundant PSUs

Network Interface

2x 1GbE ports standard; See ST550 product guide for more options

Power (Energy Star 2.1 compliant)

1x 450W 80 PLUS Gold (fixed); or 2x 550W/750W/1100W 80 PLUS Platinum (hot-swap/redundant N+1); or 2x 750W 80 PLUS Titanium (hot-swap/redundant)

Systems Management

XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported

Microsoft Windows Server, SUSE, Red Hat, VMware vSphere.

Limited Warranty

1-year and 3-year customer replaceable unit and onsite service, next business day 9×5
