Key Applications Virtualization Enterprise Server Application and data serving Compute Intensive Applications Key Features Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP) 1200W Redundant Titanium level Power Supplies

Key Applications

Virtualization

Enterprise Server

Application and data serving

Compute Intensive Applications

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP

16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM

4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)

1200W Redundant Titanium level Power Supplies

Product SKUs

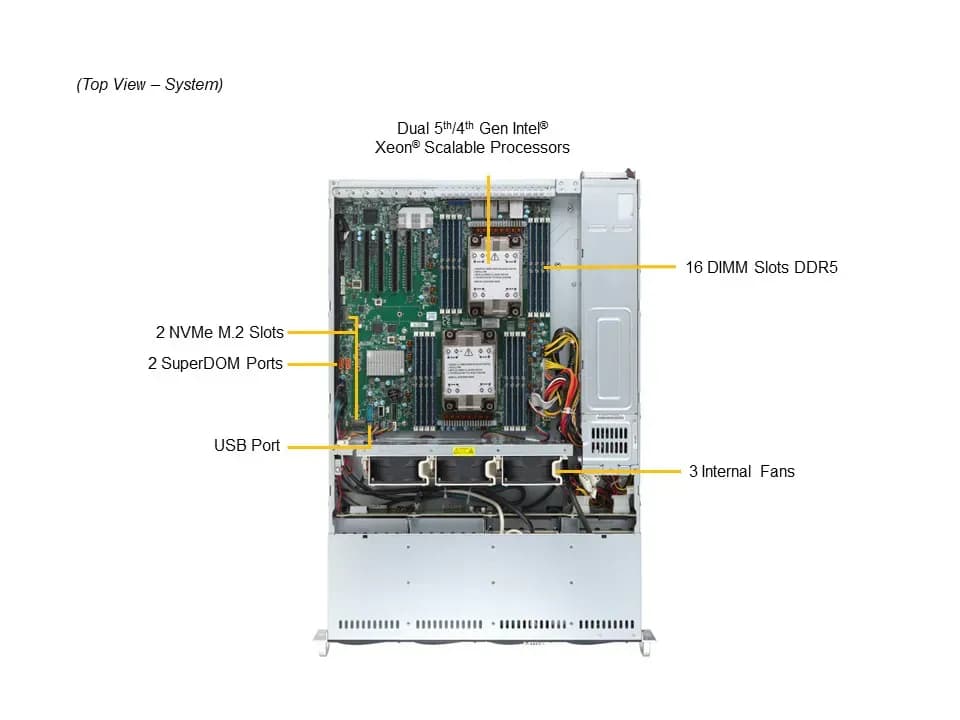

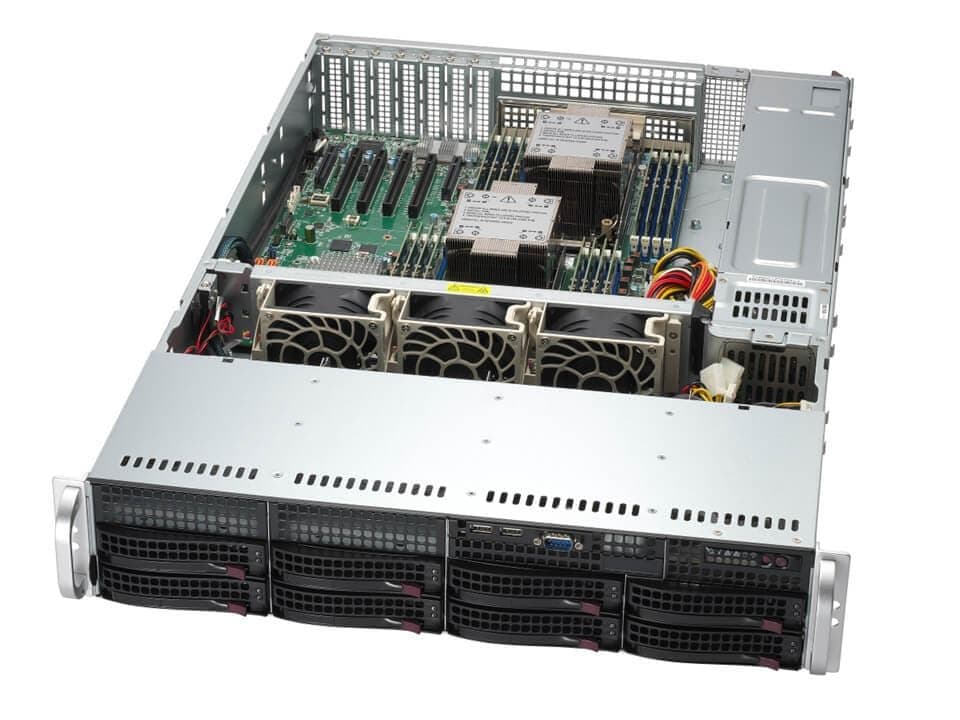

SuperServer SYS-621P-TRT

Motherboard

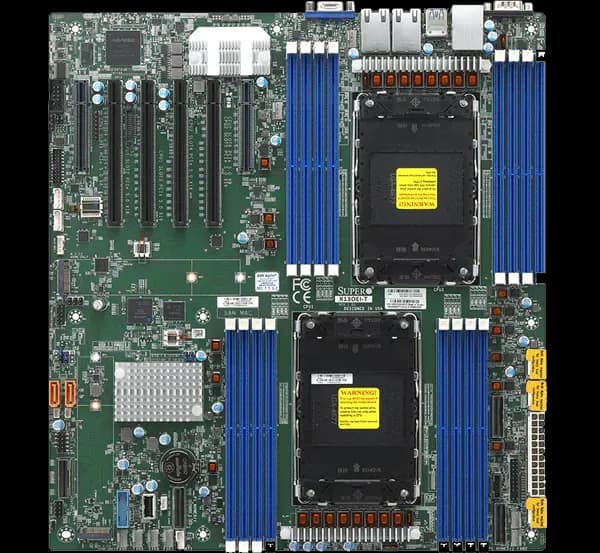

Super X13DEI-T

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Note

Supports up to 300W TDP CPUs (Air Cooled)

System Memory

Memory

Slot Count: 16 DIMM slots

Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

View Memory Options

On-Board Devices

SATA

SATA (6Gbps)

Chipset

Intel® C741

Network Connectivity

2 RJ45 10GbE

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 2.0 port(s) (front)

4 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

1 COM port(s) (Front)

DOM

2 SuperDOM (Disk on Module) port(s)

TPM

1 TPM Onboard/port 80

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-825BTS-R1K23LPP1

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (647 mm)

Package

11.4″ (H) x 26.7″ (W) x 34.5″ (D)

Weight

Gross Weight: 69 lbs (31.2 kg)

Net Weight: 36.38 lbs (16.5 kg)

Available Color

Black

Front Panel

LED

HDD activity

Network activity

Power status

System information (overheat/UID)

Buttons

Power On/Off

System Reset

Expansion Slots

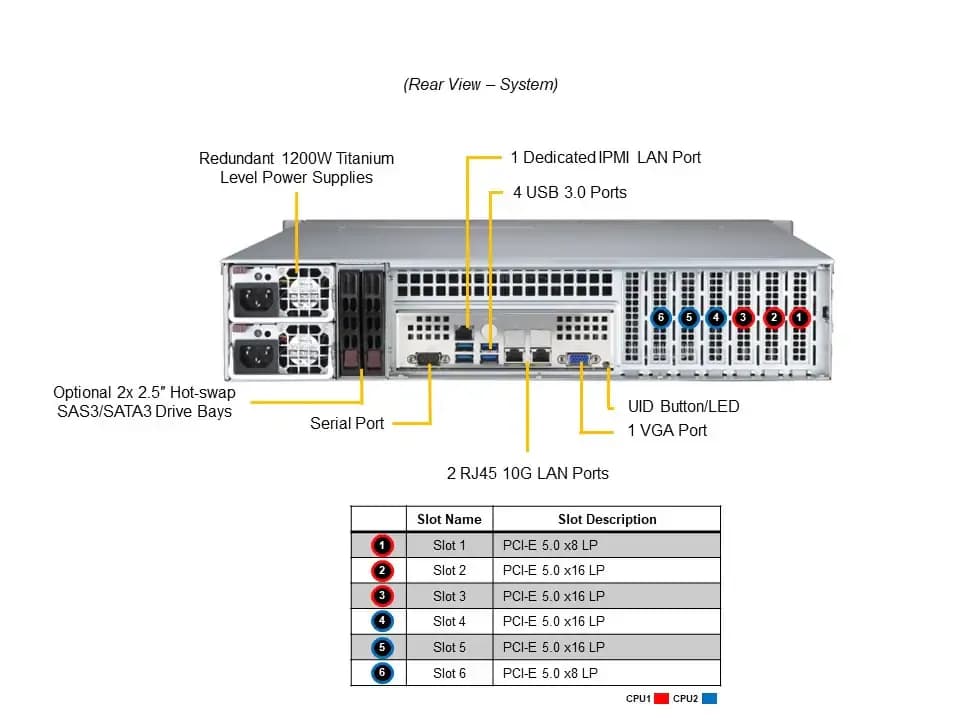

PCI-Express (PCIe) Configuration

Default

2 PCIe 5.0 x8 LP slot(s)

4 PCIe 5.0 x16 LP slot(s)

View AOC Options

M.2

2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key)

Drive Bays / Storage

Drive Bays Configuration

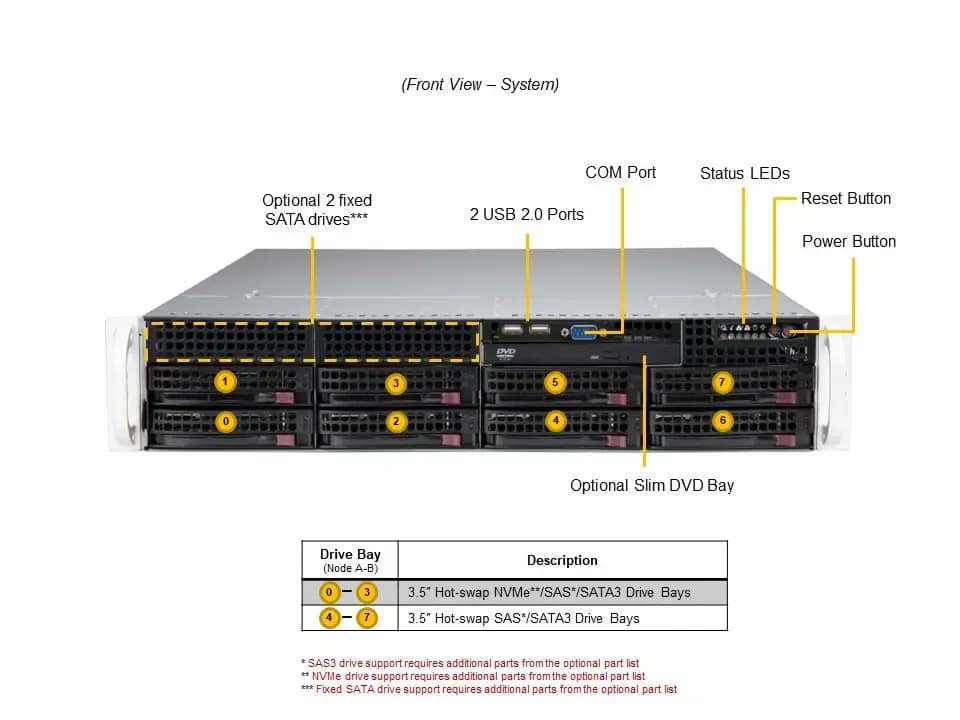

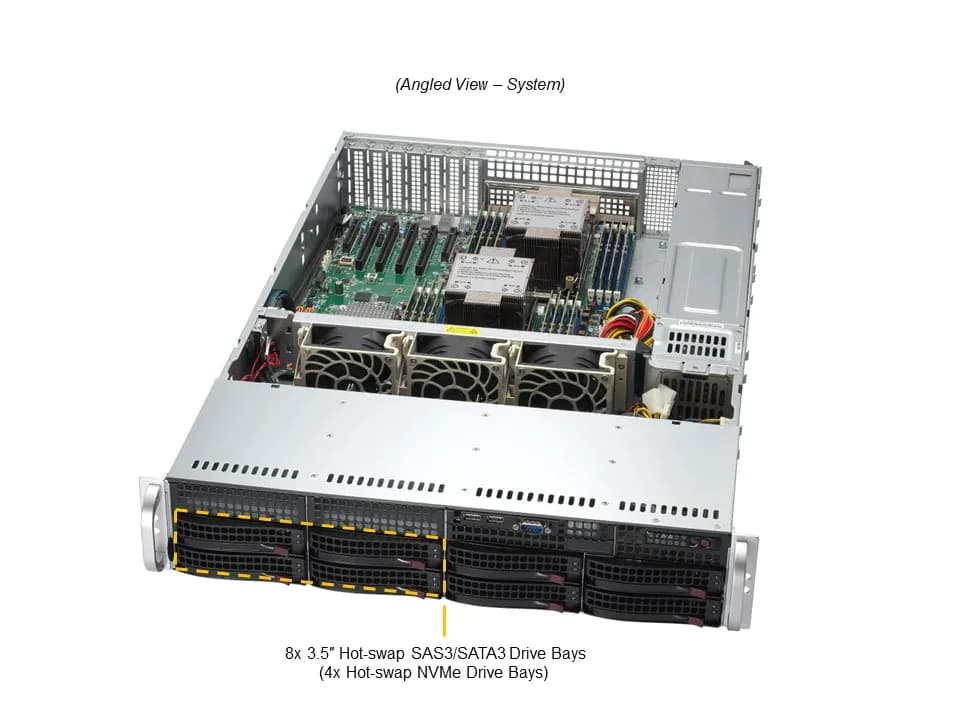

Default: Total 8 bay(s)

4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bay(s)

4 front hot-swap 3.5″ SAS*/SATA drive bay(s)

(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 NVMe slot(s) (M-key)

View M.2 Options

Peripheral Bays

1 slim DVD bay(s) (optional)

System Cooling

Fans

3 middle 8cm Fan(s)

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)

76 x 40 x 336 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vdc-240Vdc)

Max: 100A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)
