Key Applications

Artificial Intelligence (AI)

Business Intelligence

ERP, CRM

Scientific Virtualization

In-Memory Database

HCI

SAP HANA

Key Features

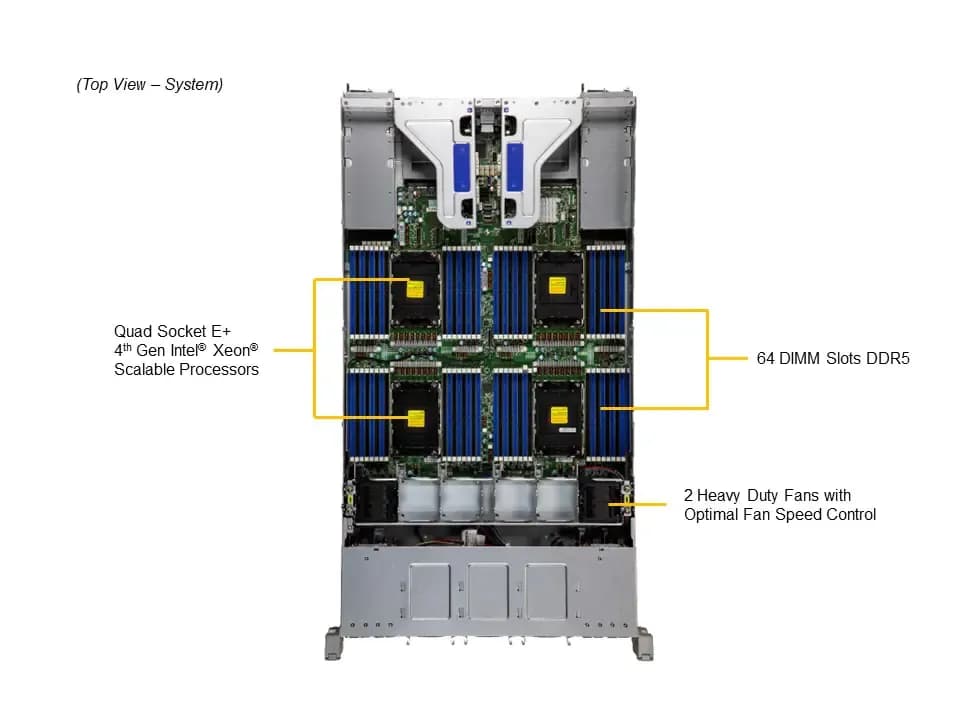

Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors

64 DIMM Slots; Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS

Optional PCIe configurations up to 12 PCIe slots with support for two double-width GPU/Accerlator cards

Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

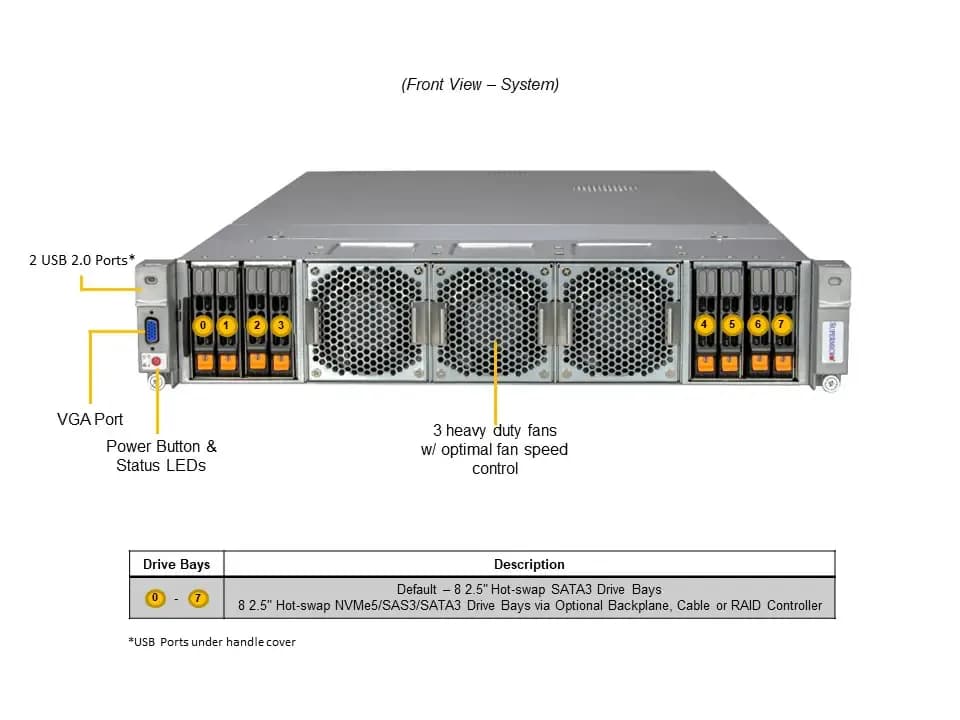

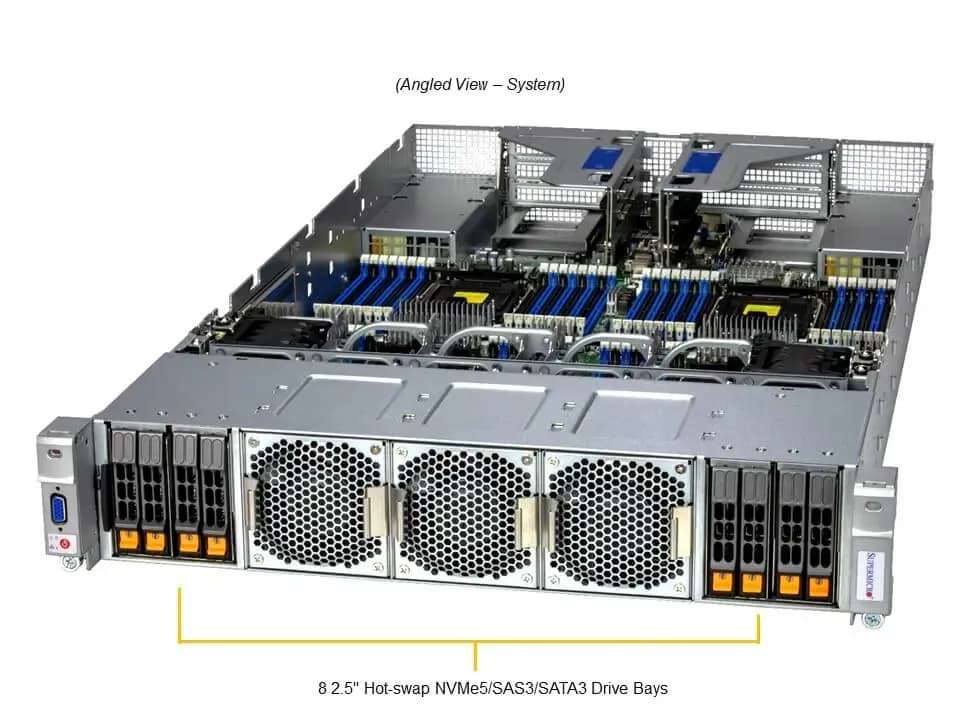

8x 2.5″ Hot-swap NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card

5 heavy duty fans w/ optimal fan speed control

Product SKUs

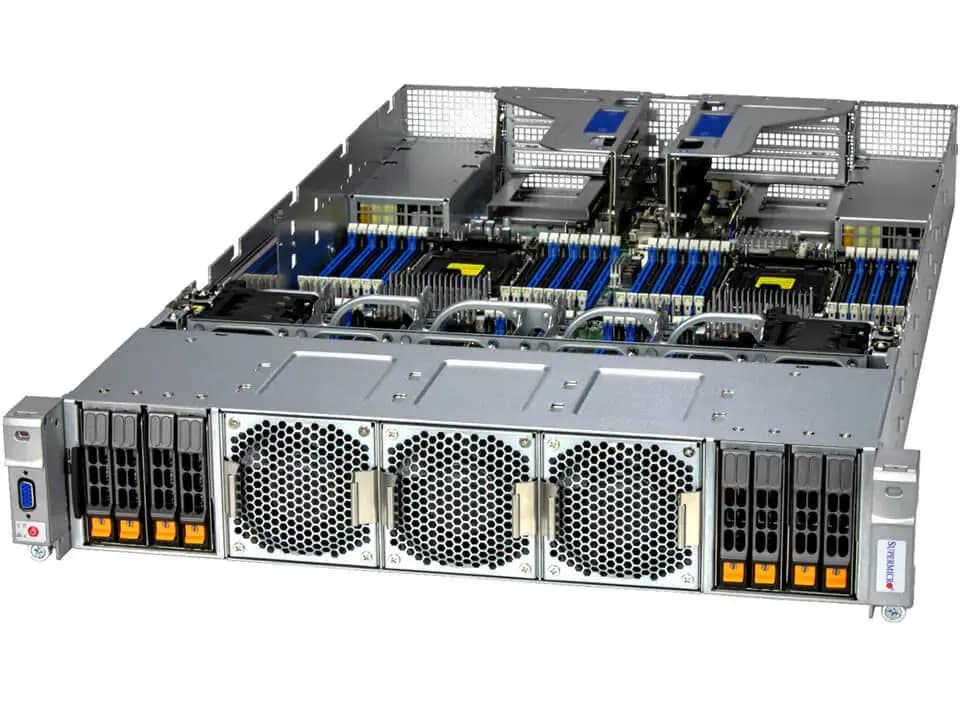

SuperServer SYS-241H-TNRTTP

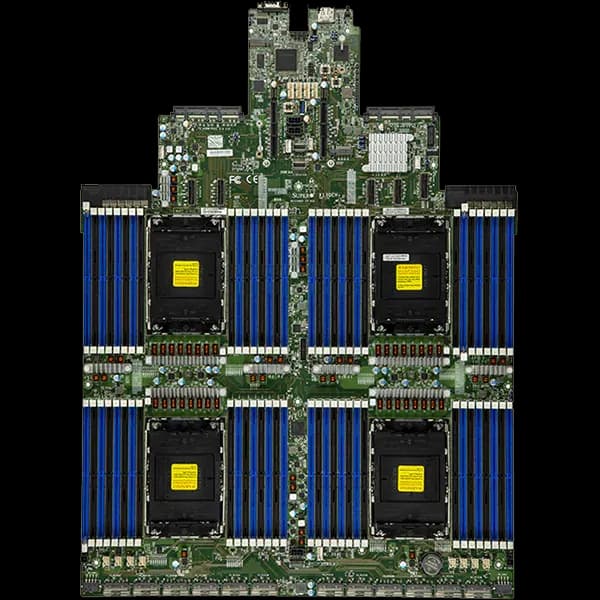

Motherboard

Super X13QEH+

Processor

CPU

Quad Socket E (LGA-4677)

4th Gen Intel® Xeon® Scalable processors

Core Count

Up to 60C/120T; Up to 112.5MB Cache per CPU

Note

Supports 165W – 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 2 double-width GPU(s)

Supported GPU

NVIDIA PCIe: H100, L40, RTX A6000, RTX A4000, L40S, A100

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

PCIe

System Memory

Memory

Slot Count: 64 DIMM slots

Max Memory (2DPC): Up to 8TB ECC DDR5 RDIMM

View Memory Options

On-Board Devices

Chipset

Intel® C741

Network Connectivity

Via AIOM

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

2 USB 3.0 port(s) (rear)

2 USB 2.0 port(s) (front)

Video

1 VGA port(s)

1 DisplayPort port(s)

Serial

1 COM port(s) (Rear)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-218H2TS-R2K7AWP

Dimensions and Weight

Height

3.5″ (87.9 mm)

Width

17.3″ (438.4 mm)

Depth

32″ (812.9 mm)

Package

9.75″ (H) x 26.5″ (W) x 43.5″ (D)

Weight

Gross Weight: 71.5 lbs (32.43 kg)

Net Weight: 45.5 lbs (20.64 kg)

Available Color

Black

Front Panel

LED

HDD activity

Network activity

Power status

System information (overheat/UID)

Buttons

Power On/Off

UID

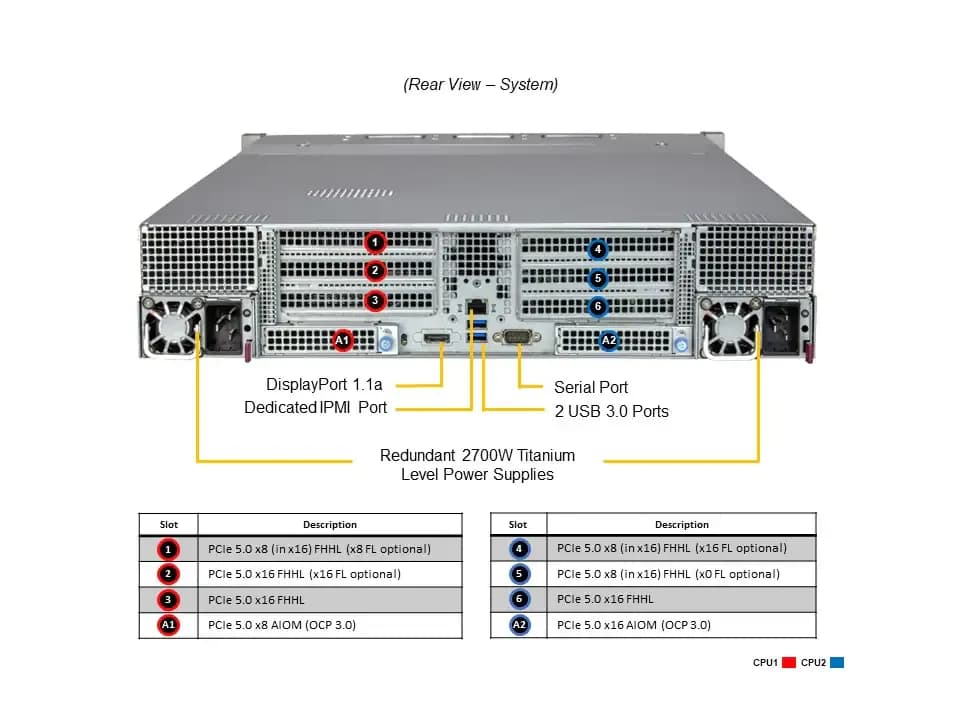

Expansion Slots

PCI-Express (PCIe) Configuration

Default

3 PCIe 5.0 x8 (in x16) FHHL slot(s)

3 PCIe 5.0 x16 FHHL slot(s)

1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option A

2 PCIe 5.0 x16 FHFL double-width slot(s)

2 PCIe 5.0 x16 FHHL slot(s)

1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B*

3 PCIe 5.0 x8 (in x16) FHHL slot(s)

3 PCIe 5.0 x16 FHHL slot(s)

2 PCIe 4.0 x8 (in x16) LP slot(s)

2 PCIe 4.0 x16 LP slot(s)

1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

…

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap 2.5″ SATA drive bay(s)

Option A: Total 8 bay(s)

8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

3 Heavy duty counter-rotating 8cm Fan(s)

2 Internal Heavy duty counter-rotating 6cm Fan(s)

Power Supply

2x 2700W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 203 mm

AC Input

2700W: 200-240Vac / 50-60Hz

2700W: 240-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 225A / Min: 0A (200Vac-240Vac)

Max: 225A / Min: 0A (240Vdc-240Vdc)

12V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (Non-Condensing)

Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
