Key Applications Artificial Intelligence (AI) Business Intelligence ERP, CRM Scientific Virtualization In-Memory Database HCI SAP HANA Key Features Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; ; (optional) AIOM up to 100G QSFP28 8 heavy duty fans w/ optimal fan speed control

Key Applications

Artificial Intelligence (AI)

Business Intelligence

ERP, CRM

Scientific Virtualization

In-Memory Database

HCI

SAP HANA

Key Features

Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors

Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; ; (optional) AIOM up to 100G QSFP28

8 heavy duty fans w/ optimal fan speed control

Product SKUs

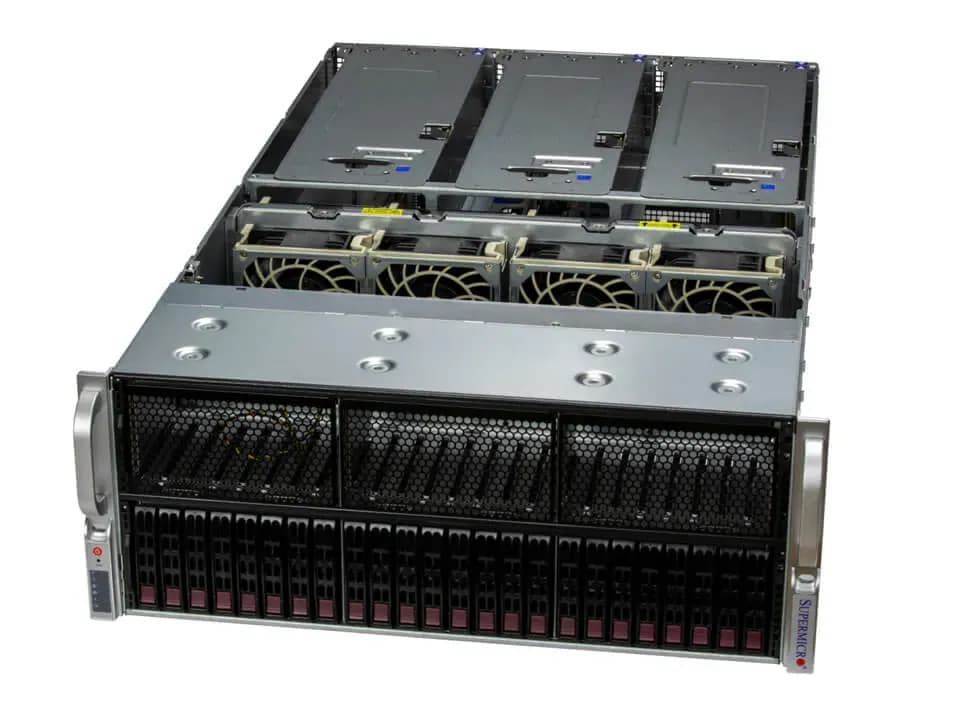

SuperServer SYS-440P-TNRT

Motherboard

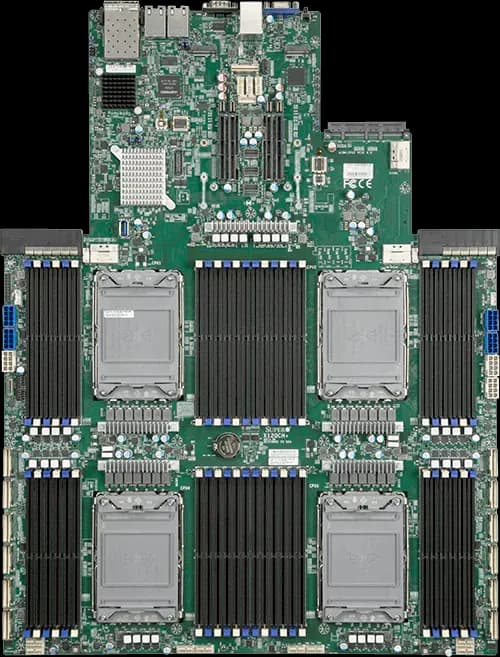

Super X12QCH+

Processor

CPU

Quad Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 28C/56T; Up to 38.5MB Cache per CPU

Note

Supports 120W – 250W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 6 double-width GPU(s)

System Memory

Memory

Slot Count: 48 DIMM slots

Max Memory (2DPC): Up to 12TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

On-Board Devices

Chipset

Intel® C621

Network Connectivity

2 RJ45 10GBASE-T with Intel® X710-TM4

2 SFP+ 10GbE with Intel® X710-TM4

1 QSFP28 100GbE with AIOM (optional)

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

2 RJ45 10 GbE LAN port(s)

2 SFP+ 10 GbE LAN port(s)

USB

2 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

4U Rackmount

Model

CSE-418HTS-R3K3AWP

Dimensions and Weight

Height

6.96″ (177 mm)

Width

17.3″ (440.9 mm)

Depth

29.74″ (755.5 mm)

Package

17.12″ (H) x 28.34″ (W) x 42.5″ (D)

Weight

Gross Weight: 132.27 lbs (60 kg)

Net Weight: 77.16 lbs (35 kg)

Available Color

Black

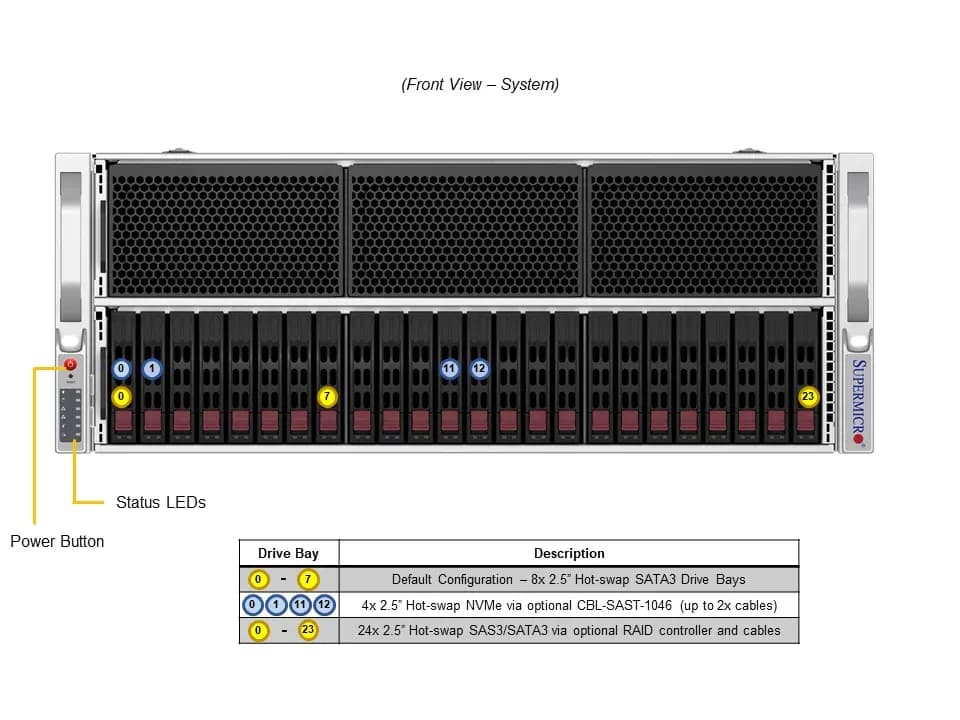

Front Panel

LED

HDD activity

Network activity

Power status

System information (overheat/UID)

Buttons

Power On/Off

UID/ BMC Reset (Default)

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 3.0 x16 FHHL slot(s)

6 PCIe 3.0 x16 FHFL slot(s)

4 PCIe 3.0 x8 (in x16) FHHL slot(s)

6 PCIe 3.0 x8 FHFL slot(s)

1 PCIe 3.0 x16 (in x16) AIOM slot(s) (OCP 3.0 compatible)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 24 bay(s)

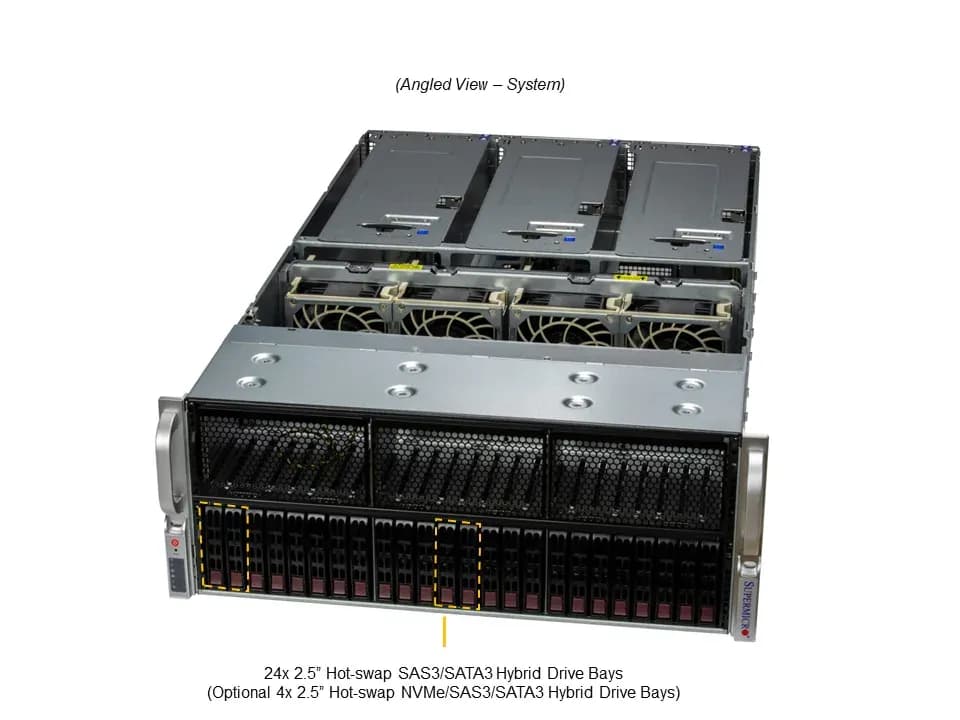

24 front hot-swap 2.5″ SAS/SATA drive bay(s)

Option A: Total 24 bay(s)

20 front hot-swap 2.5″ SAS/SATA drive bay(s)

4 front hot-swap 2.5″ NVMe/SAS/SATA drive bay(s)

View Drive Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

8x 9cm heavy duty fans with optimal fan speed control

Air Shroud

1 Air Shroud(s)

Power Supply

1x 1600W Redundant Platinum Level (94%) power supply

Dimension (WxHxL)

73.5 x 40 x 185 mm

AC Input

1000W: 100-127Vac / 47-63Hz

1600W: 200-240Vac / 47-63Hz

1600W: 240-240Vdc / 47-63Hz (Only for China)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 132A / Min: 0A (200Vac-240Vac)

Max: 132A / Min: 0A (240Vdc-240Vdc) (For China Only)

12V SB

Max: 2.1A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (Non-Condensing)

Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
