Key Features

– Hyperscale and Hyperconverged

Solutions

– Compute Intensive Application

– HPC, Data Center

– Enterprise Server

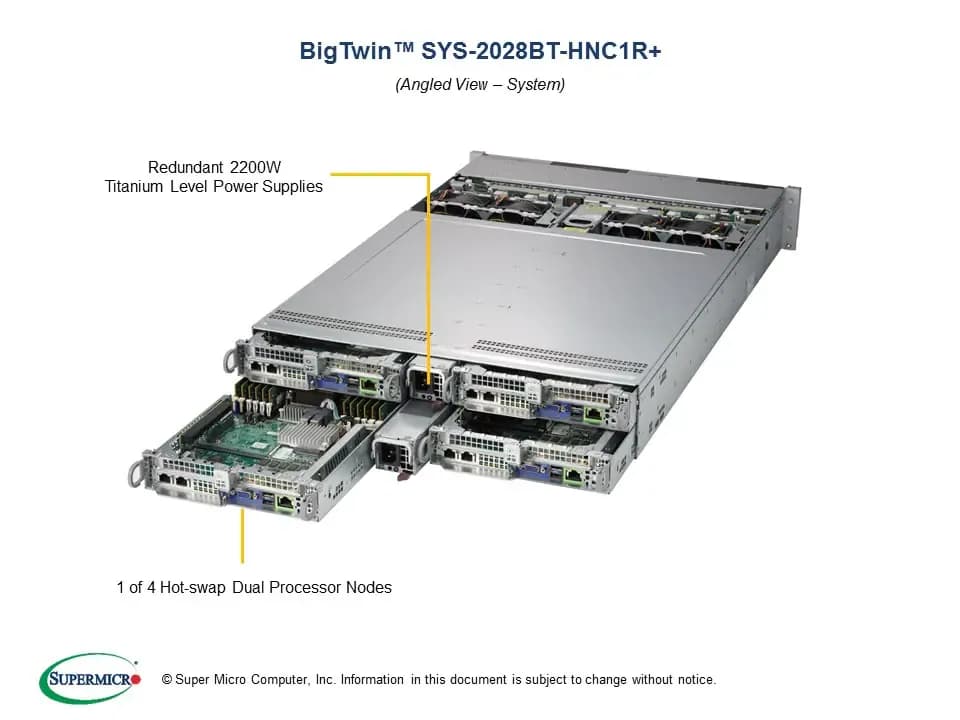

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Dual socket R3 (LGA 2011) supports

Intel® Xeon® processor E5-2600

v4†/ v3 family; QPI up to 9.6GT/s

2. Up to 3TB† ECC 3DS LRDIMM , up to

DDR4- 2400†MHz ; 24 DIMM slots

3. 1 PCI-E 3.0 x16 (LP) slot; 1 SIOM

card support (flexible networking)

Note: must bundle with Network card

4. IPMI 2.0 + KVM with dedicated LAN

5. 6 SAS3 or 4 NVMe + 2 SAS3

Hot-swap 2.5″ drive bays

6. SAS3 support via Broadcom 3108;

HW RAID 0, 1, 5, 6, 10, 50, 60

7. Video via Aspeed AST2400 BMC

8. 4 heavy duty 8cm PWM fans with

air shroud

9. 2200W Redundant Power Supplies

Titanium Level

10. 2 M.2 Cards support

Product SKUs

SYS-2028BT-HNC1R+

SuperServer 2028BT-HNC1R+ (Black)

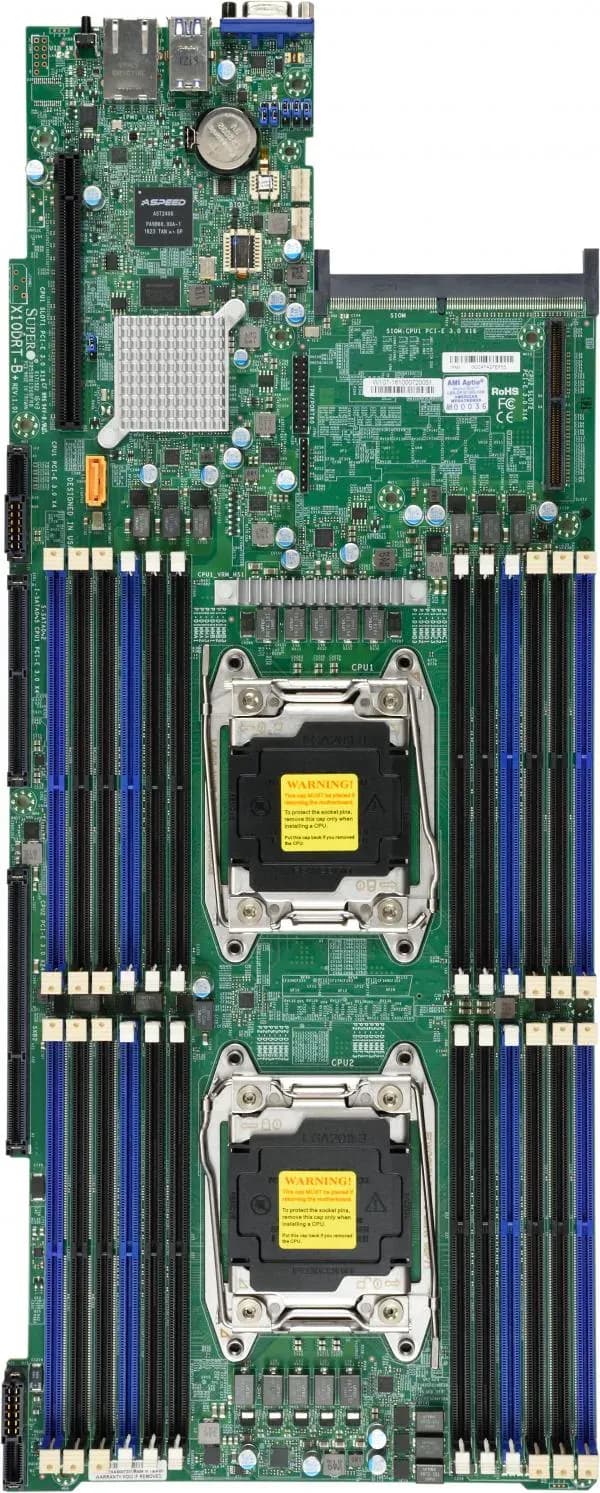

Motherboard

Super X10DRT-B+

Processor/Cache (per Node)

CPU

Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *

Dual Socket R3 (LGA 2011)

Cores / Cache

Up to 22 Cores† / Up to 55MB† Cache

System Bus

QPI up to 9.6 GT/s

Note

† BIOS version 2.0 or above is required

Note

* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)

Memory Capacity

24x 288-pin DDR4 DIMM slots

Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM

Memory Type

2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

RDIMM: 32GB, 16GB, 8GB, 4GB

LRDIMM: 64GB, 32GB

3DS LRDIMM: 128GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors

On-Board Devices (per Node)

Chipset

Intel® C612 chipset

SAS

SAS3 (12Gbps) via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Network

Must bundle with at least one SIOM network card

Video

ASPEED AST2400 BMC

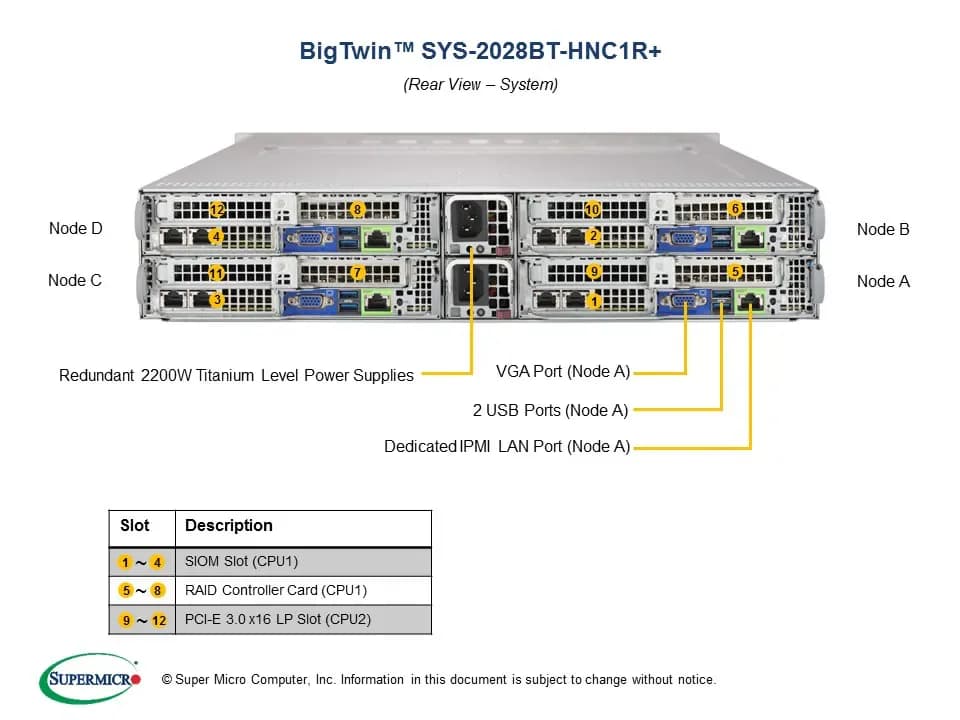

Input / Output (per Node)

SAS

6 SAS3 (12Gbps) ports

LAN

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

Video

1 VGA port

Others

M.2 and SATA DOM for boot drive only

Chassis

Form Factor

2U Rackmount

Model

CSE-217BHQ+-R2K22BP

Dimensions and Weight

Width

17.6″ (447mm)

Height

3.47″ (88mm)

Depth

28.75″ (730mm)

Package

9.76″ (H) x 24.65″ (W) x 45.28″ (D)

Weight

Gross Weight: 85 lbs (38.6kg)

Net Weight: 54.5 lbs (24.7 kg)

Available Colors

Black

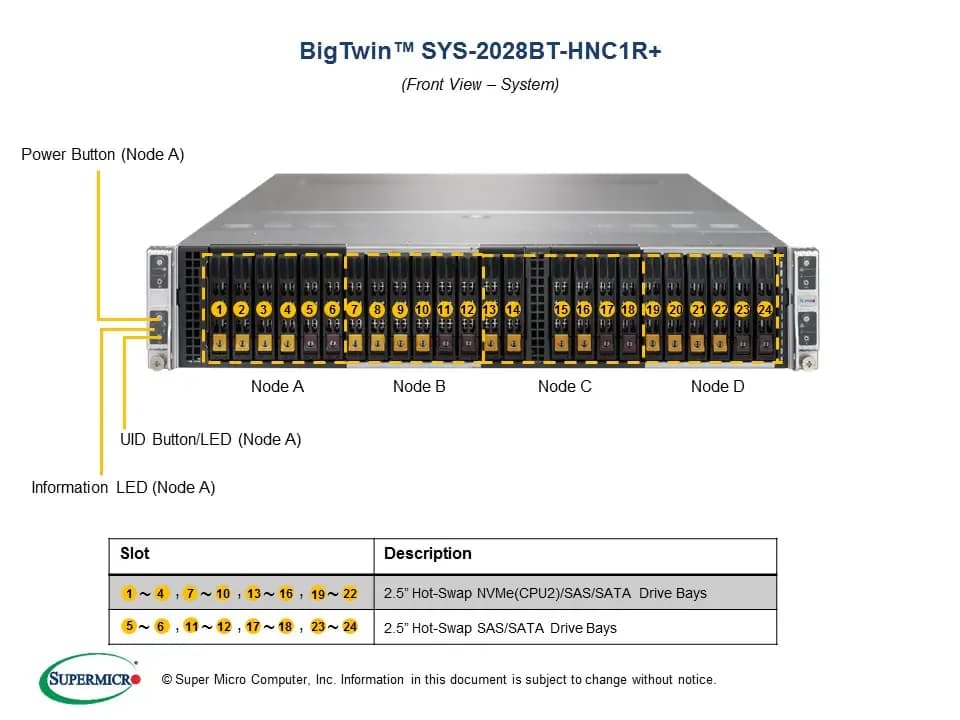

Front Panel

Buttons

Power On/Off button

UID button

LEDs

Power status LED

HDD activity LED

2 Network activity LEDs

Universal Information (UID) LED

Expansion Slots (per Node)

PCI-Express

1 PCI-E 3.0 (x16) Low-profile slot

1 SIOM card (must bundle with network card)

Drive Bays (per Node)

Hot-swap

6 Hot-swap 2.5″ SAS3 drive bays or

4 NVMe + 2 SAS3 Hot-swap 2.5″                                                                                                      Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

System Cooling

Fans

4 heavy duty 8cm PWM fans with air shroud

Power Supply

2200W Redundant Power Supplies with PMBus

Total Output Power

1200W/1800W/1980W/2090/2200W

Dimension

(W x H x L)

45 x 40 x 480 mm

Input

1200W: 100-127Vac / 50-60Hz

1800W: 200-220Vac / 50-60Hz

1980W: 220-230Vac / 50-60Hz

2090W: 230-240Vac / 50-60Hz

2090W: 180-220Vac (for UL/cUL only)

2200W: 220-240Vac (for UL/cUL only)

2090W: 230-240Vdc (for CCC only)

+12V

Max: 100A / Min: 0A (100-127Vac)

Max: 150A / Min: 0A (200-220Vac)

Max: 165A / Min: 0A (220-230Vac)

Max: 174.17A / Min: 0A (230-240Vac)

Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)

Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)

Max: 174.17A / Min: 0A (230-240Vdc, CCC only)

12Vsb

Max: 2.1A / Min: 0A

Output Type

Gold Finger

Certification

Titanium Level

[ Test Report ]

System BIOS

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C to 35°C (50°F to 95°F)

Non-operating Temperature:

-40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
