Key Applications

Database Applications

Backup Storage, Cold Storage

Data Warehousing, Archiving

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.

8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM

2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots

Intel® Ethernet Controller X550 2x 10GbE RJ45

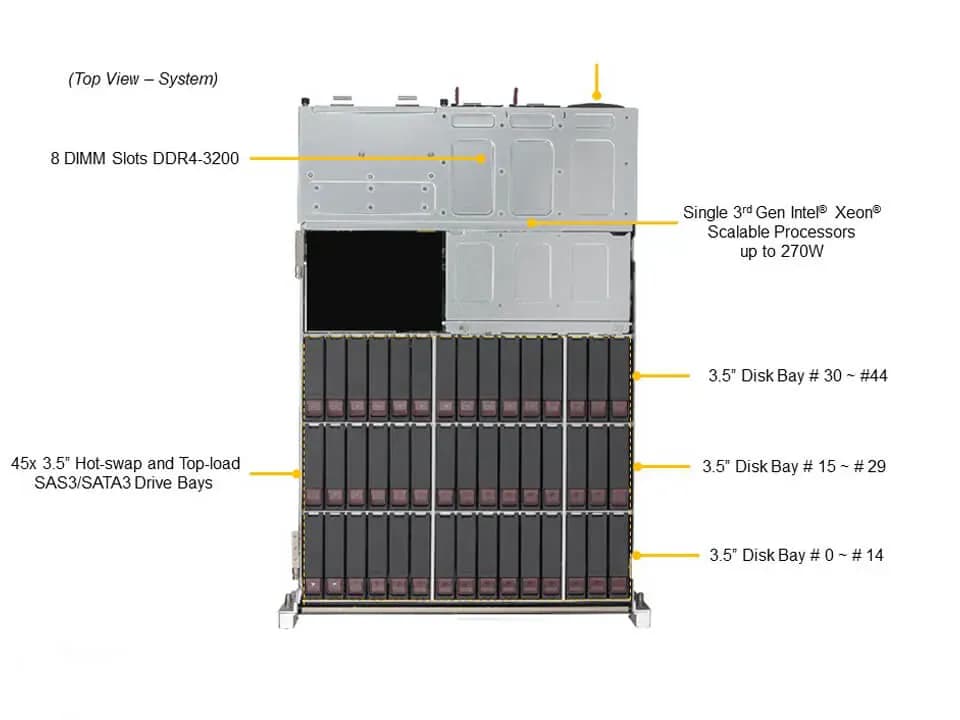

45x Top-loading hot-swap 3.5″ SAS3/SATA3 drive bays, 2x Hot-swap 2.5″ SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ SATA3/NVMe (rear, optional)

Redundant Platinum 1600W Power Supply

Product SKUs

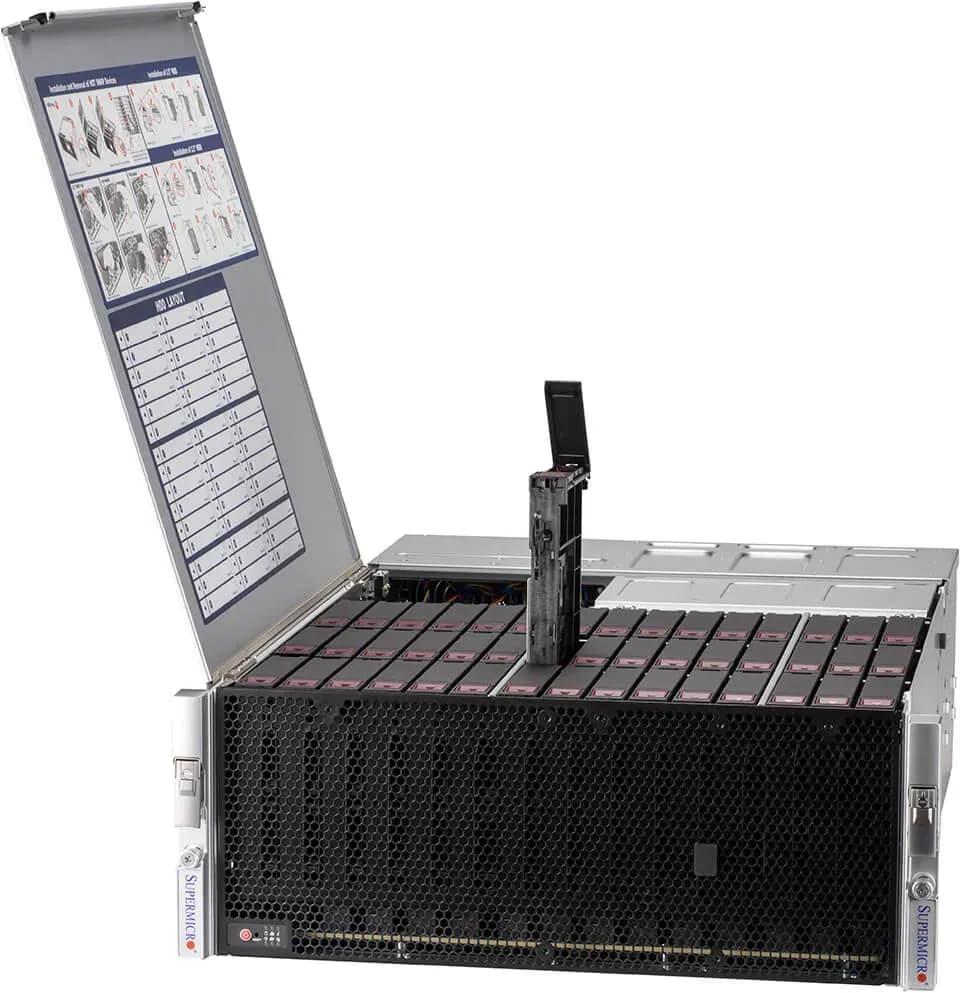

SuperServer SSG-540P-E1CTR45L

Motherboard

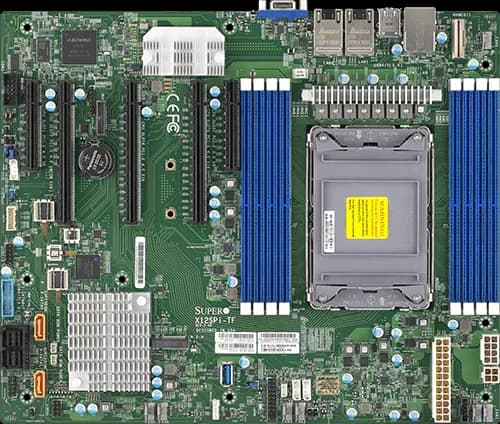

Super X12SPI-TF

Processor

CPU

Single Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 40C/80T; Up to 60MB Cache

Note

Supports up to 270W TDP CPUs (Air Cooled)

System Memory

Memory

Slot Count: 8 DIMM slots

Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

Memory Voltage

1.2V

On-Board Devices

SATA

SATA (6Gbps)

SAS

SAS (12Gbps) ; (IT mode)

NVMe

NVMe; RAID 0/1 support(Intel® VROC RAID key required)

View NVMe Options

Chipset

Intel® C621A

Network Connectivity

2 RJ45 10GBASE-T with Intel® X550

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

2 RJ45 1 GBASE-T LAN port(s)

USB

2 USB 2.0 port(s) (header)

2 USB 2.0 port(s) (rear)

1 Type-A port(s)

2 port(s) (header)

2 port(s) (rear)

Video

1 VGA port(s)

DOM

2 SuperDOM (Disk on Module) port(s) with built-in power

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7+1 Phase-switching voltage regulator module (VRM)

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

4U Rackmount

Model

CSE-946LTS-R1K66P1

Dimensions and Weight

Height

7″ (178 mm)

Width

17.2″ (437 mm)

Depth

26″ (660 mm)

Package

22″ (H) x 28″ (W) x 42″ (D)

Weight

Gross Weight: 120 lbs (54.43 kg)

Net Weight: 85 lbs (38.56 kg)

Available Color

Black

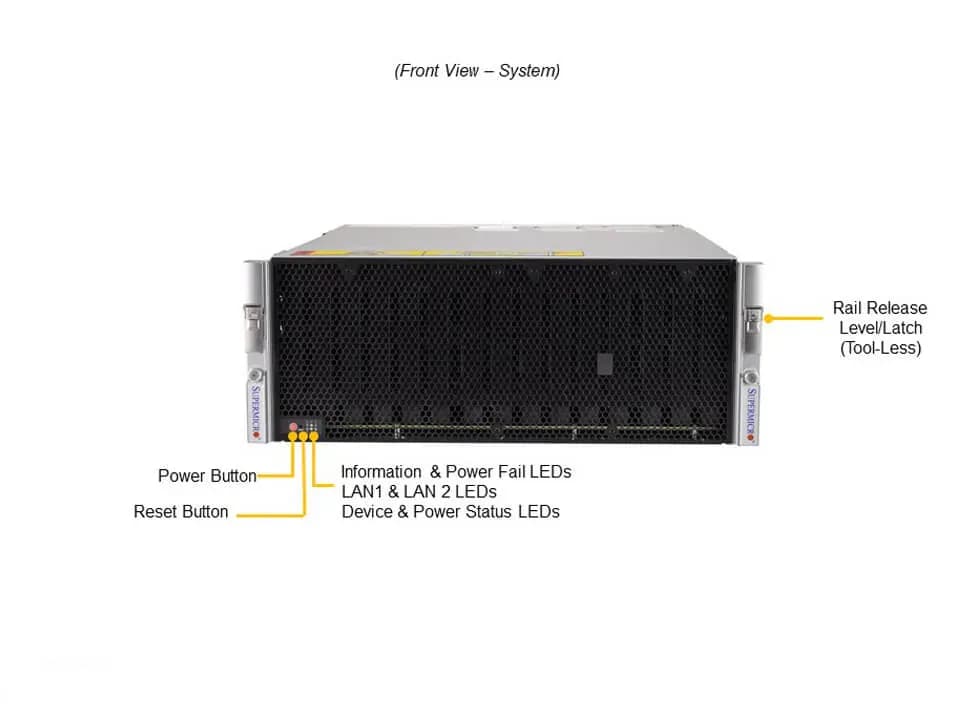

Front Panel

LED

Device Activity

LAN 1 Activity

LAN 2 Activity

Power Failure LED

Power status

System information

Buttons

Power On/Off

System Reset

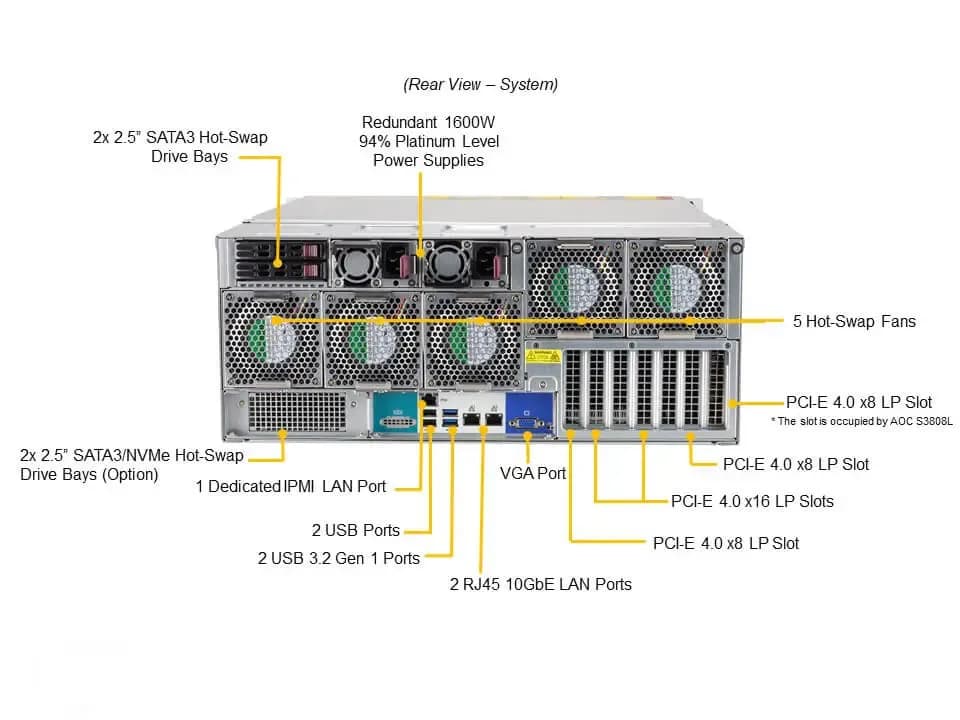

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 4.0 x8 LP slot(s)

2 PCIe 4.0 x16 LP slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 47 bay(s)

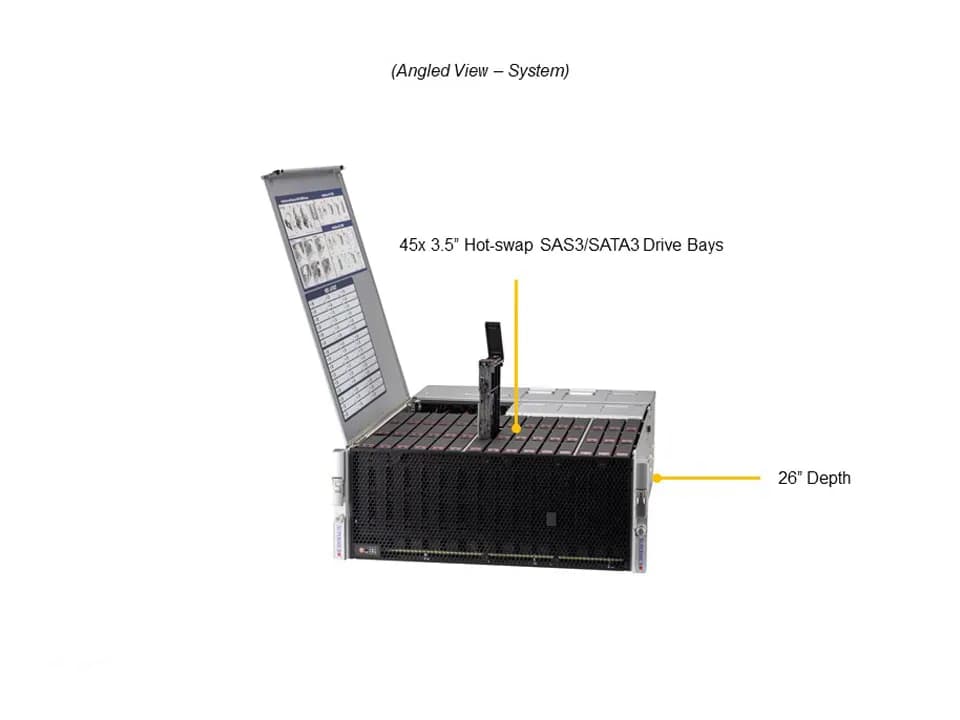

45 top-loading hot-swap 3.5″ SAS/SATA drive bay(s)

2 rear hot-swap 2.5″ SATA drive bay(s)

View NVMe Options

View Drive Options

M.2

View M.2 Options

System Cooling

Fans

5 Heavy Duty PWM 80x80x38mm Fan(s)

Power Supply

1x 1600W Redundant Platinum Level (94%) power supply

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1600W: 200-240Vac / 50-60Hz

+12V

Max: 82A / Min: 0.1A (100Vac-120Vac)

Max: 132A / Min: 0.1A (200Vac-240Vac)

12V SB

Max: 2A / Min: 0.2A

Output Type

Backplanes (gold finger)

Certification

Platinum Level

[ Test Report ]

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
