Cabling Shortcuts That Cost More Than They Save
The cabling shortcuts that cost the most are the ones nobody sees at handover: a channel built from two manufacturers' parts, a warranty that was never registered, pairs untwisted too far at the jack, trays filled to the lip, and ports with no labels. Each one saves a few hours or a few hundred dirhams during the fit-out. Each one gets paid back, with interest, once the ceiling tiles are down and the office is trading.
What follows is the list an infrastructure engineer checks before signing off a Dubai office, with the vendor rule behind each item, so a business owner can hold a contractor to it without owning a tester.
Mixing brands in one channel can cancel the long warranty
The 25 year cabling warranty in most quotations is a system warranty, and it comes with conditions. CommScope's published System Warranty terms apply only to products installed by a CommScope Authorized Partner, installed to CommScope's own procedures, and tested to industry standards. The paperwork has deadlines too: test results must reach CommScope within 60 days of installation, and registration must be applied for within 90 days of completion.
Panduit works the same way. Its Certification Plus System Warranty, offered at 15, 20 or 25 years, is available only when a Panduit ONE Partner holding the Deploy competency does the installation, and it covers Panduit connectivity with Panduit cable or an approved manufacturer's cable. Panduit's terms also state the warranty does not cover problems caused by improper installation.
In practice, this is where a Business Bay fit-out goes wrong. The main contractor subcontracts the cabling, the subcontractor buys jacks from one distributor and cheaper cable from another, and the quotation still says "25 year warranty". Often nobody registers anything, because the mixed channel would not qualify. Ask for the warranty certificate number at handover. If the contractor cannot produce one within the 90 day window, you do not have the warranty you paid for.
Later changes can void it as well
CommScope's terms say moves, additions and changes are covered only if an Authorized Partner performs them, and the test results with a bill of materials must be sent within 30 days. A tenant in DIFC who lets the landlord's maintenance team add six desks in year three can lose the system warranty on the whole floor. Budget the re-stack with the original installer, or accept that the warranty ends there.
Painters in the ceiling void
This one surprises most clients. CommScope's warranty is void if products are exposed to paint, water, chemicals, cleaning supplies or lubricants, and the end customer must notify a partner or CommScope within 24 hours of such contamination. On a JLT fit-out the usual sequence is cabling first, then painters spraying the exposed soffit black. Overspray lands on open cable trays and patch panels. Write into the programme that trays and racks are sheeted before any spraying, and photograph it.
Untwisting too much at the jack
Fluke Networks' termination guidance, published in January 2014 and still current on its knowledge base, quotes the TIA rule that pair twists shall be maintained to within 13 mm of the point of termination for Category 5e and above. It then adds the practical point: using the full 13 mm allowance reduces performance and can fail short links. Fluke also advises stripping only the minimum of cable jacket, following the connector maker's instructions.
Rushed terminations happen on the last two nights before a handover, when a team is punching down 300 outlets against a landlord's deadline. Ask for a sample of terminations to be opened and inspected before the faceplates go on, and look at the worst near-end crosstalk margins on the test report rather than the PASS column. Our guide to what cabling certification reports prove explains how to read those margins.
Tight bends and tight cable ties
Panduit's cable management guidance quotes TIA/EIA-568-B: the minimum bend radius, under no load, for 4 pair UTP cable is four times the cable diameter, which Panduit equates to about 1 inch for Category 6. The same standard says cable stress from tightly cinched bundles should be minimised. Plastic ties pulled hard with a gun tool do exactly that.
The fix costs almost nothing: hook and loop ties, bundles supported rather than hanging over the sharp edge of a ladder rung, and a service loop that respects the bend radius. The damage from the shortcut is harder to spot, because a crushed bundle often still passes on handover day and starts dropping links when a later move puts more stress on it.
Filling trays and cable managers to the brim
Leviton's application note on cable fill, dated 30 May 2023, summarises the NEC, ANSI/TIA-569-E and EN 50174-2 rules: conduit carrying three or more cables tops out at 40% fill, and cable trays should be designed and installed at no more than 25% fill, with growth allowed up to a 50% maximum. Leviton notes a tray at 25% looks half full and one at 50% looks completely full. For cable managers, which have no standard of their own, Leviton recommends 35% for rear managers and 30% for front managers carrying patch cords.
A tray that looks full on day one is a design fault, not good value. UAE offices re-stack often, and the next tenant, or your own expansion, needs space to pull new runs without dragging existing cable. Packed bundles also run hotter once access points and cameras draw Power over Ethernet through them, which our PoE standards explainer covers alongside the heat in a Dubai ceiling void in August.
No labels and no records
ANSI/TIA-606-D, published in October 2021, is the administration standard for telecommunications infrastructure. It sets out four classes of administration, with Class 1 covering a premises served by a single equipment room, which describes most SME offices in the UAE. It covers assigning an identifier to each component, permanent labels, and records that link those identifiers together.
Skipping this looks free until the first outage. Without labels that match a floor plan, tracing one faulty desk port means an engineer with a toner probe working through a patch panel while staff wait. Require printed labels at the outlet and the panel, and a spreadsheet that maps outlet to panel port to switch port, handed over with the test results.
Running data cable beside power
Schneider Electric's guidance on separating communications and power cabling points straight to ANSI/TIA-569, and says the recommended distance varies, so there is no single figure to quote a contractor without reading the standard against your containment design. The shortcut in shared ceiling voids is to lay data cable on the same containment as lighting circuits because it was already there. Ask the designer to state which TIA-569 separation applies and to show it on the containment drawing.
Skipping certification testing
Some contractors offer a lower price with "continuity tested" instead of certified. Fluke Networks reported in April 2024 that certification testing adds only about 5% to a typical installation job's labour, and quoted Siemon saying it requires 100% certification testing to offer its 25 year warranty. Without full test results, no manufacturer registers the system, so dropping testing also drops the warranty. It is the worst value trade on the list.
What to write into the cabling contract
- One named manufacturer for cable, jacks, panels and patch cords, with the installer's current partner status for that manufacturer attached.
- Warranty registration submitted within the manufacturer's deadline, 90 days in CommScope's case, and the certificate number delivered to you.
- 100% certification testing, with native tester files as well as the PDF.
- Tray fill at or below 25% at handover, and hook and loop ties only.
- Protection of trays and racks before any painting, with photographs.
- TIA-606-D printed labels at the outlet and the panel, and an outlet to switch port schedule.
- Stated separation from power per ANSI/TIA-569, shown on the drawings.
If you are still choosing the cable itself, start with our comparison of Cat 6, Cat 6A and fibre for a Dubai fit-out.
Matching the active hardware to the cabling
Codeeo Tech supplies the equipment at each end of the cable, not the installation. That includes switching and wireless from Cisco and HPE Aruba, and rack power protection from APC. Every item is quoted rather than priced online. Send the outlet count, the certified category and the number of PoE devices with your enquiry, and the quotation can be built around the cabling you actually have.

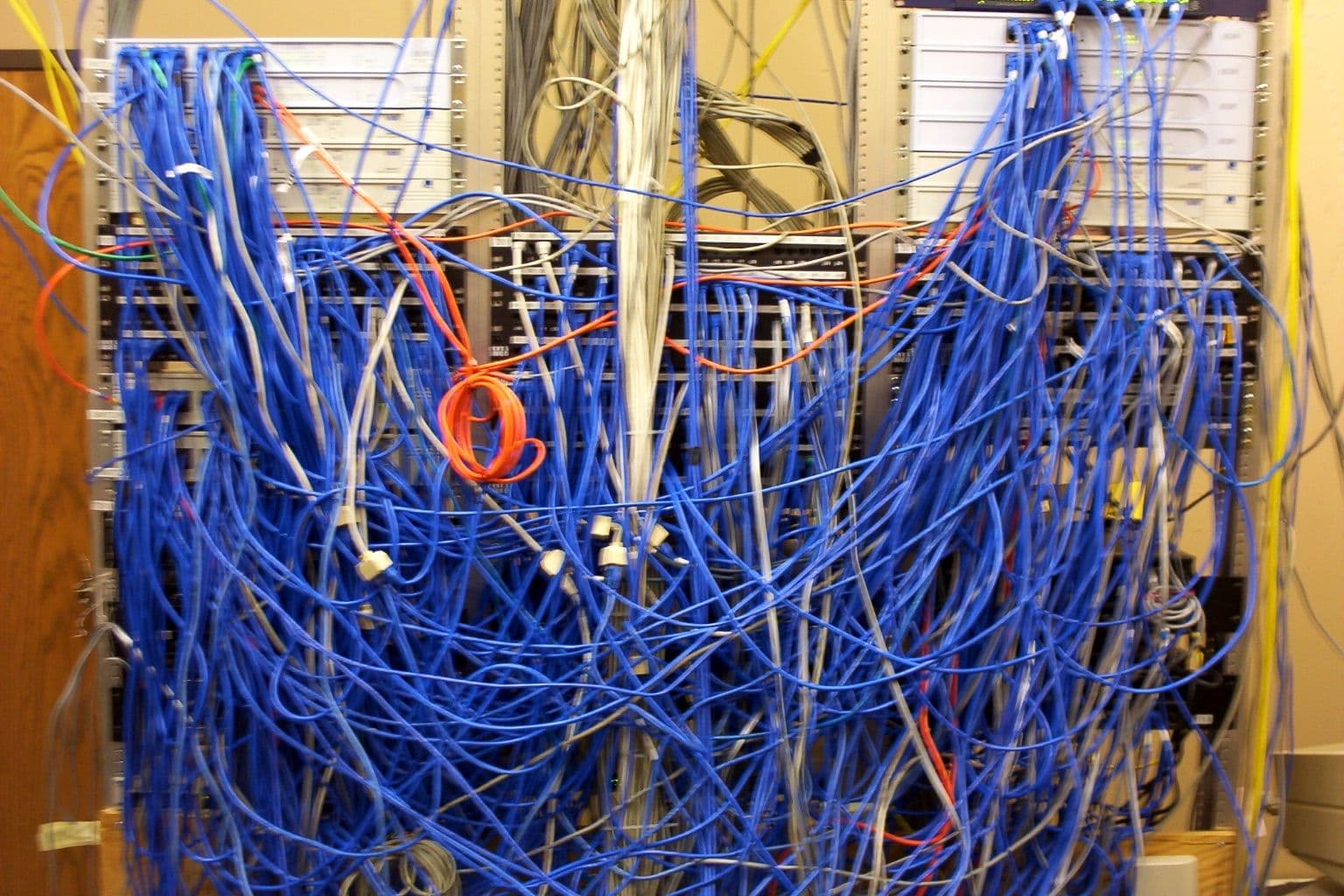

Cover photo: Cable closet bh, via Wikimedia Commons (Public domain).
