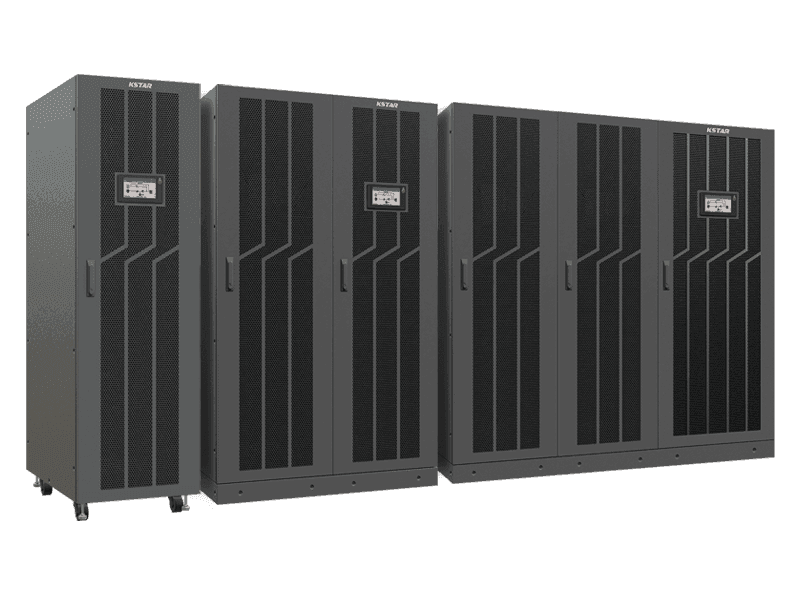

The HPM family is a modular UPS designed to offer the highest possible availability. The power of a single UPS unit can be increased up to 1200 kW and the system can include up to 8 units in parallel. This modular 3 phase UPS also provides one of the highest efficiency ratings in its class and delivers better power protection and quality to the load.The hot-swappable function can reduce the maintenance time to 5 minutes and improves system availability. It provides you higher power density, smaller footprint, and easy-scaling.

General Features

● 138-485 Vac wide input voltage range to minimize battery use

● High input power factor up to 0.99

● 3-level topology design, efficiency is up to 96.5%

● Support parallel expanded operation:maximum is 8 units

● Smart sleeping mode for energy saving and prolong the life time of the system

● User-friendly 7-inch and 10-inch LCD touch screen for easy UPS operation

Technical Specification

Module Model

HPM3300E-RM-50

Cabinet Model

HPM3300E-200

HPM3300E-300

HPM3300E-400

HPM3300E-500

HPM3300E-600

HPM3300E-800

HPM3300E-1000

Cabinet capacity (VA)

200k

300k

400k

500k

600k

800k

1000k

Module capacity (VA)

50k

Max. number

4

6

8

10

12

16

20

INPUT

Nominal voltage

380/400/415Vac, (3Ph+N+PE)

Operating voltage range

138~305Vac for 40% Load; 305~485Vac for 100% Load;

Operating frequency range

40Hz-70Hz

Power factor

≥0.99

Harmonic distortion (THDi)

≤3% (100% linear load)

Bypass voltage range

Max. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)

Min. voltage: -45% (optional-10%, -15%, -20%, -30%)

Bypass frequency tracking range

±10%

Power Walk In

Support

Generator input

Support

OUTPUT

Rated voltage

380/400/415Vac, (3Ph+N+PE)

Power factor

1

Voltage regulation

±1%

Output

Line mode

Synchronize with input, when the input frequency ＞±10%（±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)

frequency

Bat. mode

(50/60±0.1%)Hz

Crest factor

3 ：1

Harmonic distortion (THDv)

≤2% with linear load; ≤4% with nonlinear load

Efficiency

up to 96.5%

BATTERY

Battery voltage

VRLA battery

360Vdc~600Vdc (30~50pcs continuously adjustable, 30pcs default, 36~50pcs no powerderating; 32~35pcs output power factor 0.9; 30/31pcs output power factor 0.8)

Lithium battery

512Vdc

Power module charge  current

20A (Max.)

SYSTEM FEATURES

Transfer time

Utility to Battery : 0ms; Utility to bypass: 0ms

Overload

Line mode

≤110%, 60min; ≤125%, 10min; ≤150%,1min to bypass; ＞150%, shut down immediately

Bypass mode

30℃: 135% overload for long term; 40℃: 125% overload for long term; >1000% overload for 100 ms

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Low battery voltage

Alarm and Switch off

Self-diagnostics

Upon Power On and Software Control

Backfeed protection

Support

EPO (optional)

Shut down UPS immediately (turn to bypass optional)

Battery

Advanced Battery Management

Noise suppression

Complies with EN62040-3

Audible & visual alarms

Line Failure, Battery Low, Overload, System Fault

Status LED & LCD display

Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault

Reading on the LCD display

Input, Output, Battery, Command, Setting, Maintenance

Communication interface

RS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)

ENVIRONMENTAL

Operating temperature

0℃～40℃

Storage temperature

-25℃～55℃

Humidity range

0～95% (non condensing)

Altitude

<1500m, derating required when >1500m

Noise level

<65dB

<66dB

<68dB

<70dB

<73dB

PHYSICAL

Dimension

UPS cabinet (S)

600×850×2000

600×850×2000

1200×850×2000

2000×850×2000

UPS cabinet (F)

1200×850×2000

Power module

440×620×130

UPS cabinet

270

290

310/470

650

720

980

1080

Net weight (kg)

Power module

34

STANDARDS

Safety

IEC/EN62040-1, IEC/EN62477-1

EMC

IEC/EN62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8)

Module Model

HPM3300E-RM-60

Cabinet Model

HPM3300E-300

HPM3300E-480

HPM3300E-600

HPM3300E-840

HPM3300E-1080

HPM3300E-1200

Cabinet capacity (VA)

300k

480k

600k

840k

1080k

1200k

Module capacity (VA)

60K

Max. number

5

8

10

14

18

20

INPUT

Nominal voltage

380/400/415Vac, (3Ph+N+PE)

Operating voltage range

138~305Vac for 40% Load; 305~485Vac for 100% Load;

Operating freque

40Hz-70Hz

Power factor

≥0.99

Harmonic distortion (THDi)

≤3% (100% linear load)

Bypass voltage range

Max. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)

Min. voltage: -45% (optional-10%, -15%, -20%, -30%)

Bypass frequency tracking range

±10%

Power Walk In

Support

Generator input

Support

OUTPUT

Rated voltage

380/400/415Vac, (3Ph+N+PE)

Power factor

1

Voltage regulation

±1%

Output

Line mode

Synchronize with input, when the input frequency ＞±10%（±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)

frequency

Bat. mode

(50/60±0.1%)Hz

Crest factor

3  ： 1

Harmonic distortion (THDv)

≤2% with linear load; ≤4% with nonlinear load

Efficiency

up to 96.5%

BATTERY

Battery voltage

VRLA battery

360Vdc~600Vdc (30~50pcs continuously adjustable, 30pcs default, 36~50pcs no powerderating; 32~35pcs output power factor 0.9; 30/31pcs output power factor 0.8)

Lithium battery

512Vdc

Power module charge  current

20A (Max.)

SYSTEM FEATURES

Transfer time

Utility to Battery : 0ms; Utility to bypass: 0ms

Overload

Line mode

≤110%, 60min; ≤125%, 10min; ≤150%,1min to bypass; ＞150%, shut down immediately

Bypass mode

30℃: 135% overload for long term; 40℃: 125% overload for long term; >1000% overload for 100 ms

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Low battery voltage

Alarm and Switch off

Self-diagnostics

Upon Power On and Software Control

Backfeed protection

Support

EPO (optional)

Shut down UPS immediately (turn to bypass optional)

Battery

Advanced Battery Management

Noise suppression

Complies with EN62040-3

Audible & visual alarms

Line Failure, Battery Low, Overload, System Fault

Status LED & LCD display

Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault

Reading on the LCD display

Input, Output, Battery, Command, Setting, Maintenance

Communication

RS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)

ENVIRONMENTAL

Operating temperature

0℃～40℃

Storage temperature

-25℃～55℃

Humidity range

0～95% (non condensing)

Altitude

<1500m, derating required when >1500m

Noise level

<66dB

<70dB

<73dB

PHYSICAL

Dimension

UPS cabinet (S)

600×850×2000

1200×850×2000

2000×850×2000

2000×850×2000

UPS cabinet (F)

Power module

440×620×130

UPS cabinet

290

650

720

980

1080

1200

Net weight (kg)

Power module

34

STANDARDS

Safety

IEC/EN62040-1, IEC/EN62477-1

EMC

IEC/EN62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8)
